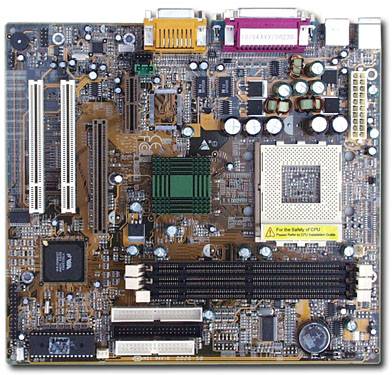

VEGA-VK7M - AMPTRON
Via KT133 (VT8363) chipset Supports AMD Duron / Athlon @200MHz FSB Supports up to 768 MB of main memory Provides a AGP 4X graphics port Supports four IDE hard disk drives Built-in hardware monitoring IC Integrate ALC-100 3D positional sound system 2MB AWARD modular BIOS for easy firmware updates Provides ATX power connector and support for ATX power management features including Suspend, Shutdown, Wake on LAN, Wake on Ring and Keyboard Power On FEATURES: Main Chipset Via Apollo KT133 Supports AMD Athlon / Duron processors Supports 100 & 200MHz Front-Side BUS speeds Memory Supports 8/16/32/64.....MB DIMM module socket Supports Synchronous DRAM ( 3.3V ) Supports a maximum memory size of 768MB with SDRAM Expansion Slots Provide one AGP slot and one AMR slot Two 32-bit PCI bus Enhanced IDE Controller Supports four IDE hard disk drives Supports 2XPCI EIDE interfaces with Bus Master Supports UltraDMA 33/66 and BUS Master Mode Power Supply and Power Management ATX power connector ACPI and legacy PMU support Supports Suspend switch, keyboard power on/off, Wake on LAN, Wake on Ring, and Wake on Alarm Onboard Sound System AC 97 2.1 interface PC99 complaint and WHL certified 16 channels of high-quality sample rate conversion 16x8 channel digital mixer Onboard I/O Ports Supports one multi-mode Parallel Port Supports two serial ports,16550 UART Supports one infrared transmission (IR) Supports PS/2 mouse and PS/2 keyboard Supports 360 KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy disk drivers Hardware Monitoring Built-in hardware monitoring for CPU & system temperature, fan speeds and voltages Onboard Flash ROM (BIOS) Licensed AWARD BIOS, 2M bit Flash ROM ACPI ready for PC98/Windows 98 System BIOS supports ACPI function and Green feature function, DMI, Plug and Play Flash ROM Dimensions Micro ATX form factor (22cm x 24.3cm)( W X L ) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
