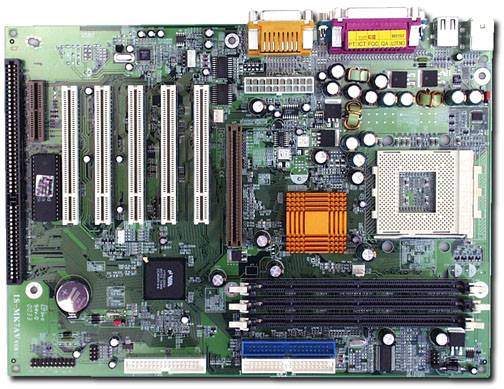

iCue-MK7AV - AMPTRON
Via KT133 (VT8363) chipset Supports AMD Duron / Athlon 600MHz - 1GHz Supports up to 1.5GB of main memory Provides a AGP 4X graphics port Onboard AMR slot for modem module Built-in hardware monitoring IC Integrate ALC-100 3D positional sound system 2MB AWARD modular BIOS for easy firmware updates Provides ATX power connector and support for ATX power management features including Suspend, Shutdown, Wake on LAN, Wake on Ring and Keyboard Power On FEATURES: Main Chipset Via Apollo KT133 Supports AMD Athlon / Duron processors Supports 100 & 200MHz Front-Side BUS speeds Memory Supports up to 1.5GB or registered SDRAM Provides (3) 168-pin DIMM slots Supports PC-100 & PC-133 memory modules Expansion Slots One AMR slot for a special Audio Modem riser card One PCI 2.0 compliant 4X AGP slot Five 32-bit PCI 2.2 compliant PCI slots One 16-bit ISA slot Enhanced IDE Controller Primary and Secondary IDE channels Supports PIO modes 0 - 4 Supports Multiword DMA modes Supports UltraDMA 33/66 and BUS mastering Power Supply and Power Management ATX power connector ACPI and legacy PMU support Supports Suspend switch, keyboard power on/off, Wake on LAN, Wake on Ring, and Wake on Alarm Onboard Sound System RealTek ALC-100 sound chip PC'97 2.1 compliant Supports two channel speaker mode MPU-401 game/MIDI port and Sound Blaster 16 compatible Onboard I/O Ports Provides PC'99 color-coded connectors for easy peripheral connection Floppy disk controller with 1Mb/s transfer rate Two 16550 UART fast serial ports One SPP, EPP/ECP parallel port Two USB ports and two additional USB ports on an optional module PS/2 keyboard and mouse ports One infrared port on the optional module Hardware Monitoring Built-in hardware monitoring for CPU & system temperature, fan speeds and mainboard voltages Onboard Flash ROM (BIOS) Licensed AWARD BIOS, 2M bit Flash ROM ACPI ready for PC98/Windows 98 System BIOS supports ACPI function and Green feature function, DMI, Plug and Play Flash ROM Dimensions ATX form factor 12" x 8.5" (30.5cm x 22cm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AMPTRON Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
