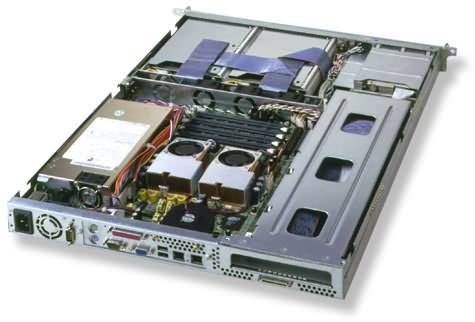

DX3R -1U - AOpen
* CPU: Dual Intel Pentium III FC-PGA 600Mhz or above (100MHz / 133MHz) * Chipset: ServerWorks ServerSet III LE: CNB30LE + OSB4 * Architecture: 1* 64Bit/66MHz PCI ( Bus Master ) * DIMM Type : 64/128/256/512MB/1G ECC Registered SDRAM (PC100/PC133) *4 with Maximum 4GB support. * On Board SCSI Controller: Adaptec 7899 Dual Channel Ultra 160 SCSI controller with maximum bus transfer rate 160MB/Sec. 15 SCSI devices. * On Board Dual Ethernet Controller: Intel 82559 32-bits, 10/100Mbps Auto-Sense/Switch Ethernet controller. * High Performance PCI Bus: support single bus-master PCI solt. It compliants with PCI V2.2 specification with maximum 132MB/Sec bandwidth. * On Board I/O: * 2 Serial Ports (UART 16C550 Support; 9 pin RS232 *2, on SV100 rear panel ) * 1 Slim type IDE connector (PIO Mode 4 and Bus Master Ultra DMA 33 Support) * 1 Slim type Floppy Drive Connector (1.2/1.44/2.88MB) * 4 Channel USB Ports ( Rear side *2, Front side *2 ) * 2 Channel Ultra 3 SCSI 68pin Connector ( 68 pins Ultra160 connector * 2 ) * Dual 10/100Mb Ethernet Connector RJ45 * WOL ( Wake on Lan connector ) * 1 PS/2 Mouse Port * 1 PS/2 Keyboard Port * CPU fan connector ( 3pins ) *2, thermal connector ( 2pins ) *2 * System Fan connector ( 4 pins ) *5 ( Rear side *1 and Front side *4 ) * RTC: Built in ASIC * Battery: 3V Lithium Battery * Green Function: Yes * BIOS: 4Mb Flash ROM BIOS * Board Size: 305 mm x 310mm, Full ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AOPEN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
