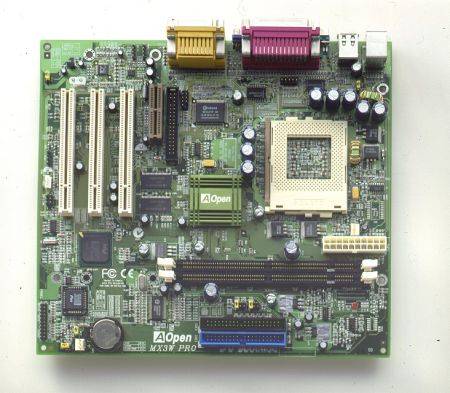

MX3W Pro - AOpen
CPU: Intel Celeron (PPGA, FC-PGA Type) / Intel Pentium III (FC-PGA Type) ASIC: Intel 810 DC-100 Chipset Architecture: 3*PCI slots + 1*AMR slot Max. Main Memory: Max. 512MB for 168pin DIMM*2 DIMM Type: 8/16/32/64/128MB or 256MB(with 128Mb DRAM technology) On Board VGA: Integrated 2D/3D Graphic Engine: -2D Resolutions & Colors (Max Refresh Rates) 640x480 256/65K/16.7M Colors(85/85/85Hz) 800x600 256/65K/16.7M Colors(85/85/85Hz) 1024x768 256/65K/16.7M Colors(85/85/85Hz) 1280x1024 256/65K/16.7M Colors(85/85/85Hz) 1600x1200 256 colors(85Hz) On Board Sound: Analog Devices AD1881 AC’97 CODEC onboard On Board I/O: 1 Serial Ports (UART 16C550 Support)/ 1 Optional Serial Port via additional COM2 cable 1 Parallel Port (SPP/EPP/ECP Support) 2 Channel E-IDE (PIO Mode 4 and Bus master Ultra DMA 33/66 Support) 1 Floppy Drive Connector (1.2/1.44/2.88MB) 2 Channel Universal Serial Bus Ports 1 PS/2 Mouse Port 1 PS/2 Keyboard Port Game/Midi Port, Speaker-Out, Line-In, Mic-In Connector: CD-Audio, IrDA, Wake-On-Lan, CPU Fan, Chassis Fan RTC: Built in ASIC Battery: 3V Lithium Battery Green Function: Yes BIOS: Award PnP Flash ROM BIOS (4MB Firmware Hub) Board Size: 220mm x 244mm, Micro ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : AOPEN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
