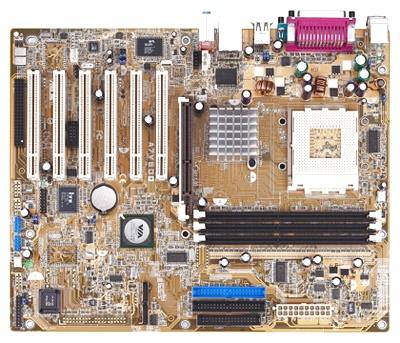

A7V600 - ASUS


New level of K7 performance
The ASUS A7V600 is the only solution that flawlessly combines the VIA KT600 chipset, DDR 400 memory support and 400MHz FSB to deliver excellent performance at an attractive price. Also included are Wi-Fi slot for optional wireless LAN upgrade, Gigabit LAN




Introduction
The ASUS A7V600 motherboard is loaded with the most advanced technologies to deliver the maximum performance for socket A processors. Based on the advanced VIA KT600 chipset with FSB 400 and DDR 400 support, the ASUS A7V600 also features AGP8X, serial ATA

400MHz FSB Athlon XP CPU Support
AMD's Athlon XP 3200+ and all follow-up CPUs now support 400MHz FSB for increased office productivity and enhanced digital media experience.


DDR400 (PC3200) Support
DDR400 (PC3200), the latest and fastest DDR memory standard, supports bandwidth up to 3.2GB/s to provide enhanced system performance.

ASUS Wi-Fi slot
The Wi-Fi slot is specifically designed for the ASUS Wireless LAN add-on card (ex. WiFi-b™) to set up an environment for home Wireless LAN. The ASUS WiFi-b™ add-on card bundles the exclusive Software AP (Access Point) to save the extra cost of an hardware re AP has to be purchased separately)


AGP 8X Technology
AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.

Serial ATA Technology
Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.

AI NET (Gigabit LAN)
The AI Series supports Gigabit LAN by integrating the 3COM 3C940 controller, equipped with a unique net-diagnosing utility-- VCT (Virtual Cable Tester). The controller intelligently detects net connection status up to 100 meters from a remote location and S/PDIF out port on back I/O
The A7V600 provides convenient connectivity to external home theater audio systems via an S/PDIF out interface. Experience 5.1-channel surround sound and enhanced 3D audio while playing your favorite DVDs or games.
8 USB 2.0 ports support
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backward compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data< ASUS C.O.P. (CPU Overheating Protection)
ASUS C.O.P. is a hardware protection circuit that automatically shuts down the system power before temperatures go high enough to permanently damage your CPU.
C.P.R. (CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear the CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

CrashFree BIOS 2
The CrashFree BIOS 2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards<
ASUS EZ Flash
With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required.


ASUS Instant Music Lite
Through this unique feature, A7V600 is conveniently designed to allow users to enjoy their favorite music without the need to enter Windows.



--------------------------------------------------------------------------------

A7V600 DDR400 Qualified Vendor List
The following table lists the PC3200-DDR400 memory modules that have been
tested and qualified for use with this motherboard. Make sure to use only the
tested and qualified DDR400 DIMMs listed below.

Size Vendor Part No. Chip Brand DS/
SS Chip No. DIMM socket (Optional)
A* B*
256mb TwinMos M2G9I08AFATT9F081AA4T TwinMos SS TMD7608F8E50D v v
512mb TwinMos M2G9J16AGATT9F081AA4T TwinMos DS TMD7608F8E50D v
256mb Apacer 77.10636.465 Samsung SS K4H560838D-TCC4 v
256mb Transcend TS32MLD64V4F3 Samsung SS K4H560838D-TCCC v
256mb ADATA MDOAD5F3G315B1EC2 ADATA SS ADD8608A8A-5B v v
256mb ADATA MDOSS6F3G31JB1EAE Samsung SS K4H560838D-TCC4 v v
256mb ADATA MDOWB5F3G316B1EAE Winbond SS W942508BH-5 v v
256mb GEIL MAG32UL6464D2TG5A-KC GEIL SS GL3LC32G88TG-5A v v
256mb Kingston KVR400X64C25/256 Winbond SS W942508BH-5 v v
256MB Kingston KVR400X64C3A/256 Hynix SS HY5DU56822BT-D43 v
512mb Kingston KVR400X64C3A/512 Hynix DS HY5DU56822BT-D43 v
256mb Winbond W9425GCDB-5 Winbond SS W942508CH-5 v v
128mb Infineon HYS64D16301GU-5-B Hynix SS HYB25D256160BT-5B v v
256mb Infineon HYS64D32300GU-5-B Hynix SS HYB25D256800BT-5B v v
512mb Infineon HYS64D32300GU-5-B Hynix DS HYB25D256800BT-5B v v
256mb Samsung M368L3223ETM-CCC Samsung SS K4H560838E-TCCC v v
512mb Samsung M368L6423ETM-CCC Samsung DS K4H560838E-TCCC v v
256mb Hynix HYMD232646B8J-D43 AA Hynix SS HY5DU56822BT-D43 v v
512mb Hynix HYMD264646B8J-D43 AA Hynix DS HY5DU56822BT-D43 v v
512mb PSC AL6D8A53T1-5B PSC DS A2S56D30ATP v v
256mb TwinMos M2S9I08AFAPS9F0811A-T PSC SS A2S56D30ATP v v
512mb KINGMAX MPXB62D-68KX3 Kingmax DS KDL684T4AA-50 v v
512mb Micron MT16VDDT6464AG-40BC4 Micron DS MT46V32M8TG-5BC v v
256mb ATP AG32L64T8SQC4S Samsung SS K4H560838D-TCC4 v
128mb NANYA NT128D64SH4B1G-5T NANYA SS NT5DS16M16BT-5T v v
256mb NANYA NT256D64S88B1G-5T NANYA SS NT5DS32M8BT-5T v v
512mb NANYA N512D64S8HB1G-5T NANYA DS NT5DS32M8BT-5T v v
256mb TwinMos M2G9I08AFTT9F0811DDT TwinMos SS TMD7608F8E50B v
512mb ATP AG28L64T8SMC4M Samsung DS MT46V64M4TG-5BC v
256mb Brain Power B6U808-256M-SAM-400 Samsung SS K4H560838D-TCC4 v
512mb Brain Power B6U808-512M-SAM-400 Samsung DS K4H560838D-TCC4 v
512mb Transcend TS64MLD64V4F3 Mosel DS HY5DU56822BT-D43 v
256mb Century DXV6S8SSCCD3K27C Samsung SS K4H560838D-TCCC v
512mb Century DXV6S8SSCCD3K27C Samsung DS K4H560838D-TCC4 v v
256mb Elixir M2U25664DS88B3G-5T Elixir SS N2DS25680BT-5T v v
512mb Elixir M2U25664DS8HB3G-5T Elixir DS N2DS25680BT-5T v v
A* : Supports one modul inserted in any slot.
B* : Supports one pair of moduls inserted into any two slots.



 CPU Support
Compatibility

RAM Memory Support
Compatibility
