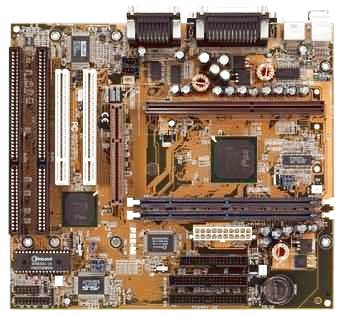

P2E-M - ASUS

Processor
Slot 1 for Intel Pentium® II Processor 233MHz ~ 333MHz
Chipset
Intel 440EX AGPset
System Memory
2 x 168-Pin DIMM Sockets Support 8MB to 256MB Memory Capacity
Use 8/16/32/64/128 MB 168-Pin Single or Double Side 3.3 V SDRAM/ Module
On Board Audio
ISA 3D Audio Controller Onboard, Sound Blaster 16/PRO Compatible, Microsoft Direct Sound 3D DirectX 5.0 Compatible.

AGP Slot
Supports AGP 66MHz / 133MHz (Sideband) 3.3V Device
On Board I/O
1 x Floppy Port (up to 2.88MB, 3 Mode Floppy Supported )
2 x Serial Ports (16650 Fast UART Compatible)
1 x Parallel Port (ECP, EPP Port)
2 x USB Ports
1 x PS/2 Mouse
1 x PS/2 Keyboard Port
1 x Game Port
3 x Audio Ports
On Board PCI IDE
2 x Ultra DMA/33 IDE Ports (Up to 4 IDE Devices) UltraDMA/33 : 33MB/Sec, DMA Mode2 & PIO Mode3, 4 : 17MB/Sec.(Max,; The Actual Transfer Speed Depends On HD)Support Greater Than 8.4GB HDD, ATAPI IDE CD-ROM & LS-120
ATAPI IDE CD-ROM & LS-120 Supported
H/W Monitoring
Optional PC Health Monitoring ASIC Supports CPU Voltage, Fan Status, and System Temperature Detection and Alert (LANDesk Client Manager S/W Bundled)
Expansion Slots
2 x 32-bit PCI slots (PCI Rev 2.1 Interface Compliant)
1 x 32-bit AGP slot
2 x 16-bit ISA slots
Enhanced ACPI Bios
Award® AGP Bios with Enhanced ACPI , DMI, Green, plug and Play Features
Plus Anti Boot Virus (TCAV) Bios
1M-bit Flash EEPROM
Power Connector
3V, 5V and 12V 20-Pin ATX Power Connector.
Soft Power and OnNow Supported
Board Size
microATX Form Factor with size : 21.6cm x 24.4cm (8.5" x 9.6")

CPU Support
Compatibility


RAM Memory Support
Compatibility
