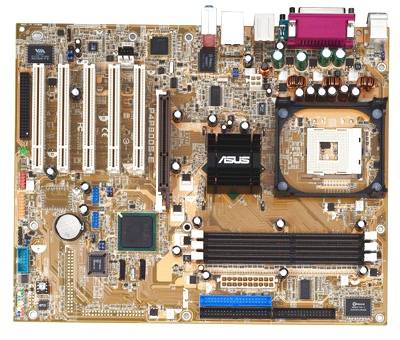

P4P800S-E Deluxe - ASUS


P4P800S-E Deluxe
800FSB and DDR400 Intel Solution
Intel 848P Chipset
Intel FSB800
DDR400
Intel Hyper-Threading Technology
AGP8X Technology
Wi-Fi slot for optional wireless LAN upgrade






--------------------------------------------------------------------------------


P4P800S-E Deluxe
/ Wireless Edition
ON SALE

WiFi-b™ wireless LAN card
* 11Mbps 802.11b Wireless LAN
* Free Software AP (under WinXP)
* External omni-directional Antenna
* EZ Setup Wizard



This package includes the ASUS motherboard and ASUS WiFi-b™ add-on card
with an omni-directional antenna. The ASUS WiFi-b™ is compliant to the 802.11b
standard and exclusively provides ASUS Software Access Point (AP) and
user-friendly utility.


--------------------------------------------------------------------------------


The ASUS P4P800S-E Deluxe, based on the Intel 848P chipset, supports Intel's Hyper-Threading Technology and next-generation Prescott CPU. Furthermore, with 800MHz FSB, Gigabit LAN, IEEE 1394, S/PDIF-out interface, AGP 8x, Serial ATA and AI features, the P

--------------------------------------------------------------------------------


Intel 848P chipset
Leveraging the Intel 848P chipset to support 3.2 GHz+ P4 CPU on 800MHz FSB, DDR 400 memory, Intel Hyper-Threading Technology and a full-range of advanced features, P4P800S-E Deluxe really delivers a full-value, high-performance solution for today's most d


DDR400 (PC3200) Support
DDR400 (PC3200), the latest and fastest DDR memory standard, supports bandwidth up to 3.2GB/s to provide enhanced system performance.



AGP 8X technology
AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.



Serial ATA technology
Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.



Intel Gigabit LAN
With Intel CSA-based Gigabit LAN controller, network data can be transferred at a much higher rate with lower latency. This new interface performs networking tasks more efficiently, and achieves bi-directional gigabit speeds.



AI Audio
P4P800S-E Deluxe employs the world’s first intelligent audio CODEC. The 6-channel AD 1985 audio CODEC automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, meani
AI BIOS
CrashFree BIOS 2~
Whenever BIOS gets corrupted, ASUS CrashFree BIOS 2 allows users to reboot the computer and perform an smart auto-recovery procedure through the motherboard support CD.
Q-Fan~
This unique technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.
ASUS POST Reporter~
A voice warning design during POST notifies users of any system errors, which means no more complicated LED messages!

AI Overclocking
ASUS P4P800S-E Deluxe offers robust overclocking options to maximize your system performance.
-- Flexible CPU Core Voltage Adjustments in 0.025V increments over defaults
-- SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment
-- Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies
-- ASUS C.P.R.(CPU Parameter Recall)

ASUS Wi-Fi slot
The Wi-Fi slot is specifically designed for the ASUS Wireless LAN add-on card (ex. WiFi-b™) to set up an environment for home Wireless LAN. The ASUS WiFi-b™ add-on card bundles the exclusive Software AP (Access Point) to save the extra cost of an hardware re AP has to be purchased separately)


S/PDIF out port on back I/O
The P4P800S-E Deluxe provides convenient connectivity to external home theater audio systems via an S/PDIF out interface. Experience 5.1-channel surround sound and enhanced 3D audio while playing your favorite DVDs or games.

8 USB 2.0 ports support
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backward compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data<
Multi-language BIOS
ASUS provides friendly localized BIOS setup menu to help you configure your system as easy as possible.

ASUS MyLogo2
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

ASUS Instant Music Lite
Through this unique feature, P4P800S-E Deluxe is conveniently designed to allow users to enjoy their favorite music without the need to enter Windows.

IEEE 1394 interface
IEEE 1394 interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.




--------------------------------------------------------------------------------

P4P800S-E Deluxe Qualified Vendor List (QVL)

DDR533 Size Vendor Model Sides
256MB GEIL GL3LC32G88TG-35

DDR500
Size Vendor Model Sides
256MB ADATA MD0ADBF3G31YB1GZH
512MB CORSAIR XMS4000
512MB GEIL GOLDEN DRAGON PC400

DDR400
Size Vendor Model Brand SS/DS Component A* B* C*
256MB Transcend TS32MLD64V4F3 Mosel SS V58C2256804SAT5 * * *
512MB Transcend TS64MLD64V4F3 Mosel DS V58C2256804SAT5 * NA
256MB Transcend TS32MLD64V4F3 Samsung SS K4H560838D-TCC4 * * *
512MB Transcend TS64MLD64V4F3 Samsung DS K4H560838D-TCC4 * * NA
256MB Kingston KVR400X64C25/256 Winbond SS W942508BH-5 * * *
256MB ADATA MDOSS6F3G31YK1EZZ Samsung SS K4H560838E-TCCC * * *
512MB Transcend TS64MLD64V4F3 Hynix DS HY5DU56822BT-D43 * * NA
512MB GEIL MAG16UL3264D1TG5A-KC GEIL DS GL3LC32G88TG-5A * NA
256MB Kingston KVR400X64C3A/256 Hynix SS HY5DU56822BT-D43 * * *
512MB Kingston KVR400X64C3A/512 Hynix DS HY5DU56822BT-D43 * * NA
256MB Winbond W9425GCDB-5 Winbond SS W942508CH-5 * * *
512MB Winbond W9451GCDB-5 Winbond DS W942508CH-5 * * NA
128MB Infineon HYS64D16301GU-5-B Infineon SS HYB25D256160BT-5B * * *
256MB Infineon HYS64D32300GU-5-B Infineon SS HYB25D256800BT-5B * * *
512MB Infineon HYS64D64320GU-5-B Infineon DS HYB25D256800BT-5B * * NA
256MB TwinMos M2G9I08AFTT9F0811DDT TwinMos SS TMD7608F8E50B * * *
512MB TwinMos M2G9I08AFTT9F0812DDT TwinMos DS TMD7608F8E50B * * NA
256MB Samsung M368L3223ETM-CCC Samsung SS K4H560838E-TCCC * * *
512MB Samsung M368L6423ETM-CCC Samsung DS K4H560838E-TCCC * * NA
512MB Brain Power B6U808-512M-SAM-400 Samsung DS K4H560838D-TCC4 * * NA
256MB Kingston KVR400X64C3A/256 Infineon SS HYB25D256800BT-5B * * *
512MB PSC AL6D8A53T1-5B PSC DS A2S56D30ATP * * NA
256MB Hynix HYMD232646B8J-D43 AA Hynix SS HY5DU56822BT-D43 * * *
512MB Hynix HYMD264646B8J-D43 AA Hynix DS HY5DU56822BT-D43 * * NA
256MB TwinMos M2G9I08AFATT9F081AA4T TwinMos SS TMD7608F8E50D * * *
512MB TwinMos M2G9J16AGATT9F081AA4T TwinMos DS TMD7608F8E50D * * NA
256MB Apacer 77.10636.465 Samsung SS K4H560838D-TCC4 * * *
512MB Apacer 77.10736.464 Samsung DS K4H560838D-TCC4 * * NA
256MB ADATA MDOAD5F3G315B1ECZ ADATA SS ADD8608A8A-5B * * *
256MB ADATA MDOSS6F3G31JB1EAE Samsung SS K4H560838D-TCC4 * * *
256MB ADATA MDOWB5F3G316B1EAE Winbond SS W942508BH-5 * * *
256MB TwinMos M2S9I08AFAPS9F0811A-T PSC SS A2S56D30ATP * * *
512MB KINGMAX MPXC22D-38KT3R Kingmax DS KDL388P4EA-50 * * NA
512MB Kingston KVR400X64C3A/256 Infineon DS HYB25D256809BT-5B * * NA
256MB Kingston KVR400X64C3A/256 Kingston SS D3208DL2T-5 * * *
256MB KINGMAX MPXC22D-38KT3R Kingmax DS KDL684T4AA-50 * NA
256MB Micron MT8VDDT3264AG-40BC4 Micron SS MT46V32M8TG-5BC * * *
512MB Micron MT16VDDT6464AG-40BC4 Micron DS MT46V32M8TG-5BC * * NA
256MB ATP AG32L64T8SQC4S Samsung SS K4H560838D-TCC4 * *
512MB ATP AG64L64T8SQC4S Samsung DS K4H560838D-TCC4 * NA
128MB NANYA NT128D64SH4B1G-5T NANYA SS NT5DS16M16BT-5T * * *
512MB NANYA N512D64S8HB1G-5T NANYA DS NT5DS32M8BT-5T * * NA
1024MB ATP AG28L64T8SMC4M Micron DS MT46V64M4TG-5BC * NA
512MB Kingston KVR400X64C3A/512 Kingston DS D328DIB-50 * * NA
256MB Century DXV6S8MC5BC3U27E Micron SS MT46V32M8TG-5BC * * *
256MB Brain Power B6U808-256M-SAM-400 Samsung SS K4H560838D-TCC4 * * *
256MB Century DXV6S8SSCCD3K27C Samsung SS K4H560838D-TCCC * * *
512MB Century DXV2S8SSCCD3K27C Samsung DS K4H560838D-TCCC * * NA
256MB Century DXV6S8SSCCE3K27E Samsung SS K4H560838E-TCCC * * *
512MB Century DXV6S8SSCCE3K27E Samsung DS K4H560838E-TCCC * * NA
512MB Century DXV2S8MC5BC3U27E Micron DS MT46V32M8TG-5BC * * NA
256MB elixir M2U25664DS88B3G-5T elixir SS N2DS25680BT-5T * * *
512MB elixir M2U25664DS8HB3G-5T elixir DS N2DS25680BT-5T * * NA
256MB GEIL MAG32UL6464D2TG5A-KC GEIL SS GL3LC32G88TG-5A * * *

A*: Supports one modul inserted in any slot in a Single-channel memory configuration
B* : Supports one pair of moduls(DS moduls only can insert DIMM1,2)
C*: Support three moduls(DS modul can not insert three slots)




 CPU Support
Compatibility

RAM Memory Support
Compatibility
