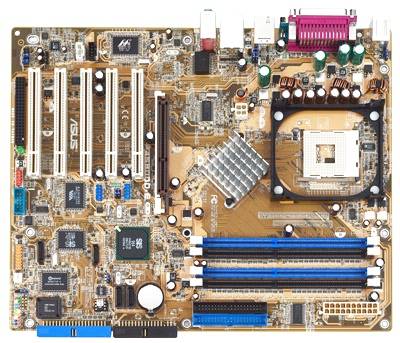

P4S800D-E Deluxe - ASUS


Flagship of SiS 655-boards
P4S800D-E Deluxe (SiS 655TX) Series
SiS®655TX Chipset with SiS Advanced HyperStreaming Architecture
Intel 800 MHz FSB
Hyper-Threading technology support
Serial ATA technology
Wi-Fi slot for optional wireless LAN upgrade





875-like performance, half the price
The P4S800D-E Deluxe series just got even better with this enhanced edition. The P4S800D-E Deluxe, based on the SiS 655TX chipset, offers great performance and features with 800MHz FSB, dual-channel DDR 400, Gigabit LAN, AGP 8x, S/PDIF, SATA, IEEE 1394, U

Advanced HyperStreaming Architecture
SiS HyperStreming™ Technology, it makes streams of chipset data flow all over the paths, Efficiently, Concurrently, Smoothly and Intelligently. Further more, SiS655TX Advanced HyperStreaming™ Engine enhances the transfer rate on the path from host block t

Dual-channel DDR400
Dual-channel DDR technology doubles the bandwidth of your system memory and hence boost the system performance to outperform any memory existing solutions in the market. The P4S800D-E Deluxe allows you to handle memory-intensive tasks with ease.


ASUS Wi-Fi slot
The Wi-Fi slot is specifically designed for the ASUS Wireless LAN add-on card (ex. WiFi-b™) to set up an environment for home Wireless LAN. The ASUS WiFi-b™ add-on card bundles the exclusive Software AP (Access Point) to save the extra cost of an hardware re AP has to be purchased separately)


AGP 8X technology
AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.



AI NET (Gigabit LAN)
The AI NET supports Gigabit LAN by integrating the Marvell controller, equipped with a unique net-diagnosing utility-- VCT (Virtual Cable Tester). The controller intelligently detects net connection status up to 100 meters from a remote location and repor
AI BIOS
CrashFree BIOS 2~
Whenever BIOS gets corrupted, ASUS CrashFree BIOS 2 allows users to reboot the computer and perform an smart auto-recovery procedure through the motherboard support CD.
Q-Fan~
This unique technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.
ASUS POST Reporter~
A voice warning design during POST notifies users of any system errors, which means no more complicated LED messages!

AI Overclocking
ASUS P4S800D-E Deluxe offers robust overclocking options to maximize your system performance.
- SFS (Stepless Frequency Selection) from 100MHz up to 300MHz at 1MHz increment
- Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies
- ASUS C.P.R.(CPU Parameter Recall)

4 Serial ATA Ports
Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.




Multi-language BIOS
ASUS provides friendly localized BIOS setup menu to help you configure your system as easy as possible.

C.P.R. (CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear the CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.


ASUS MyLogo2
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

ASUS Instant Music
Through this unique feature, P4S800D-E Deluxe is conveniently designed to allow users to enjoy their favorite music without the need to enter Windows.

IEEE 1394 interface
IEEE 1394 interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.

S/PDIF out port on back I/O
The P4S800D-E Deluxe provides convenient connectivity to external home theater audio systems via an S/PDIF out interface. Experience 5.1-channel surround sound and enhanced 3D audio while playing your favorite DVDs or games.

8 USB 2.0 ports support
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backward compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data<

--------------------------------------------------------------------------------

P4S800D-E Deluxe Qualified Vendors List (QVL)
DDR 400 memory modules
The following table lists the memory modules that have been tested
and qualified for use with this motherboard.

Size Vendor Model Brand SS/DS Component DIMM socket support (Optional)
A* B* C*
256MB KINGSTON KVR400X64C3A/256 Hynix SS HY5DU56822BT-D43 V V V
512MB KINGSTON KVR400X64C3A/512 Hynix DS HY5DU56822BT-D43 V V
256MB KINGSTON KVR400X72C3A/256 Mosel SS V58C2256804SAT5(ECC)
512MB KINGSTON KVR400X72C3A/512 Mosel DS V58C2256804SAT5(ECC)
256MB KINGSTON KVR400X64C3A/256 Infineon SS HYB25D256800BT-5B V V
512MB KINGSTON KVR400X64C3A/512 Infineon DS HYB25D256809BT-5B V
256MB KINGSTON KVR400X64C3A/256 KINGSTON SS D3208DL2T-5 V V
512MB KINGSTON KVR400X64C3A/512 KINGSTON DS D328DIB-50 V V
256MB SAMSUNG M381L3223ETM-CCC SAMSUNG SS K4H560838E-TCCC(ECC)
512MB SAMSUNG M381L6423ETM-CCC SAMSUNG DS K4H560838E-TCCC(ECC)
256MB SAMSUNG M368L3223ETM-CCC SAMSUNG SS K4H560838E-TCCC V V
512MB SAMSUNG M368L6432ETM-CCC SAMSUNG DS K4H560838E-TCCC V V
256MB Hynix HYMD232646B8J-D43 AA Hynix SS HY5DU56822BT-D43 V V V
512MB Hynix HYMD264646B8J-D43 AA Hynix DS HY5DU56822BT-D43 V V
256MB MICRON MT8VDDT3264AG-40BC4 MICRON SS MT46V32M8TG-5BC V V V
512MB MICRON MT16VDDT6464AG-40BC4 MICRON DS MT46V32M8TG-5BC V V V
128MB Infineon HYS64D16301GU-5-B Infineon SS HYB25D256160BT-5B V V
256MB Infineon HYS64D32300GU-5-B Infineon SS HYB25D256800BT-5B V V
512MB Infineon HYS64D64320GU-5-B Infineon DS HYB25D256800BT-5B V V
256MB Infineon HYS64D32300HU-5-C Infineon SS HYB25D256800CE-5C V V V
512MB Infineon HYS64D64320HU-5-C Infineon DS HYB25D256800CE-5C V V
256MB CORSAIR CMX256A-3200C2PT Winbond SS W942508BH-5 V
256MB GEIL MAG32UL6464D2TG5A-KC GEIL SS GL3LC32G88TG-5A V V V
512MB GEIL MAG16UL3264D1TG5A-KC GEIL DS GL3LC32G88TG-5A V V
512MB GEIL GE5123200B GEIL DS GL3LC32G88TG-5A V V
256MB GEIL GD3200-256V GEIL SS GLIL DDR 32M8 V V
512MB GEIL GD3200-512V GEIL DS GLIL DDR 32M8 V V
256MB TwinMOS M2G9I08AFATT9F081AA4T TwinMOS SS TMD7608F8E50D V V
512MB TwinMOS M2G9J16AGATT9F081AA4T TwinMOS DS TMD7608F8E50D
256MB TwinMOS M2S9I08AFAPS9F0811A-T PSC SS A2S56D30ATP V V V
256MB TwinMOS M2G9I08AFTT9F0811DDT TwinMOS SS TMD7608F8E50B V V
512MB TwinMOS M2G9J16AJATT9F0811DDT TwinMOS DS TMD7608F8E50B V V V
256MB Apacer 77.10636.46 SAMSUNG SS K4H560838D-TCC4 V V
512MB Apacer 77.10736.464 SAMSUNG DS K4H560838D-TCC4 V V
256MB Apacer 77.10636.18G Infineon SS HYB25D256809BT-5B V V V
512MB Apacer 77.10736-18G Infineon DS HYB25D256809BT-5B V V
256MB Transcend TS32MLD64V4F3 SAMSUNG SS K4H560838D-TCCC V V V
512MB Transcend TS64MLD64V4F3 SAMSUNG DS K4H560838D-TCCC V V V
256MB Transcend TS32MLD64V4F3 Mosel SS V58C2256804SAT5 V V V
512MB Transcend TS64MLD64V4F3 Mosel DS V58C2256804SAT5 V V V
512MB Transcend TS64MLD64V4F3 Hynix DS HY5DU56822BT-D43
1024MB Transcend TS128MLD64V4A3 SAMSUNG DS K4H560438E-GCCC V
256MB A DATA MDOAD5F3G315B1EC2 ADATA SS ADD8608A8A-5B V V
256MB A DATA MDOSS6F3G31JB1EAE SAMSUNG SS K4H560838D-TCC4 V V
256MB A DATA MDOWB5F3G316B1EAE Winbond SS W942508BH-5 V V
256MB A DATA MDOAD5F3G31YB1EZ2 ADATA SS ADD8608A8A-5B V V
256MB A DATA MDOSS6F3G31YK1EZZ SAMSUNG SS K4H560838E-TCCC V
256MB A DATA MDOWB5F3G31JB1EAZ Winbond SS W942508BH-5 V V
256MB Winbond W9425GCDB-5 Winbond SS W942508CH-5 V V V
512MB Winbond W9451GCDB-5 Winbond DS W942508CH-5 V V V
512MB PSC AL6D8A53T1-5B PSC DS A2S56D30ATP V V V
256MB PSC AL5D8B53T-5B1K PSC SS A2S56D30BTP V V V
512MB PSC AL6D8B53T-5B1K PSC DS A2S56D30BTP V V
512MB KINGMAX MPXC22D-38KT3R KINGMAX DS KDL388P4EA-50 V V
256MB KINGMAX MPXB62D-38KT3R KINGMAX SS KDL388P4EA-50
256MB ATP AG32L64T8SQC4S SAMSUNG SS K4H560838D-TCC4
512MB ATP AG64L64T8SQC4S SAMSUNG DS K4H560838D-TCC4 V V
256MB ATP AG32L72T8SQC4S SAMSUNG SS K4H560838D-TCC4(ECC)
512MB ATP AG64L72T8SQC4S SAMSUNG DS K4H560838D-TCC4(ECC)
1024MB ATP AG28L64T8SMC4M MICRON DS MT46V64M4TG-5BC V
128MB NANYA NT128D64SH4B1G-5T NANYA SS NT5DS16M16BT-5T V V V
256MB NANYA NT256D64S88B1G-5T NANYA SS NT5DS32M8BT-5T V V V
512MB NANYA N512D64S8HB1G-5T NANYA DS NT5DS32M8BT-5T V V V
256MB BRAIN POWER B6U808-256M-SAM-400 SAMSUNG SS K4H560838D-TCC4 V V
512MB BRAIN POWER B6U808-512M-SAM-400 SAMSUNG DS K4H560838D-TCC4 V V
256MB CENTURY DXV6S8SSCCD3K27C SAMSUNG SS K4H560838D-TCCC V V V
512MB CENTURY DXV2S8SSCCD3K27C SAMSUNG DS K4H560838D-TCCC V V
256MB CENTURY DXV6S8SSCCE3K27E SAMSUNG SS K4H560838E-TCCC V V V
512MB CENTURY DXV2S8SSCCE3K27E SAMSUNG DS K4H560838E-TCCC V V
256MB CENTURY DXV6S8MC5BC3U27E MICRON SS MT46V32M8TG-5BC V V
512MB CENTURY DXV2S8MC5BC3U27E MICRON DS MT46V32M8TG-5BC V V V
256MB elixir M2U25664DS88B3G-5T NANYA SS N2DS25680BT-5T V V V
512MB elixir M2U25664DS8HB3G-5T NANYA DS N2DS25680BT-5T V V
256MB Kreton N/A VT SS VT3225804T-5 V V
512MB Kreton N/A VT DS VT3225804T-5 V
256MB Veritech VT400FMV/2561103 VT SS VT56DD32M8PC-5 V V V
512MB Veritech VT400FMV/5121003 VT DS VT56DD32M8PC-5 V V


A*: Supports one module inserted in any slot as Single-channel memory configuration.
B*: Supports one pair of modules inserted into either the blue slots or the black slots as one pair of Dual-channel memory configuration.
C*: Supports 4 modules inserted into both the blue and the black slots as two pairs of Dual-channel memory configuration.



 CPU Support
Compatibility

RAM Memory Support
Compatibility
