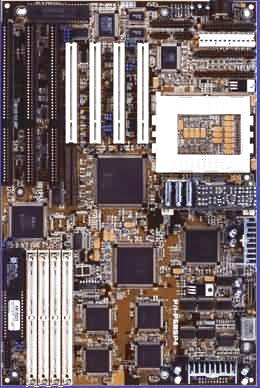

P/I-P6RP4 - ASUS
Processor Intel Pentium® II (233Mhz-266MHz) CPU Intel Chipset Features Intel® 440FX PCIset with I/O subsystems Architecture Compatible with 32-bit PCI and 16-bit ISA Bus Slots ISA & PCI Expansion Slots 5 x 32-bit PCI Slots 3 x 16-bit ISA Slots Cache 512KB or 256KB Pipelined Burst Level 2 cache in the Pentium II Single Edge Contact (SEC) Cartridge. System Memory 1 x 168-pin DIMM socket to support (8, 16, 32, 64, or 128MB) 168-pin 5V EDO DRAM) 4 x 72-pin SIMM to support (4, 8, 16, 32, or 64MB MB) 72-pin Fast Page Mode (FPM) or Extended Data Output (EDO), or Burst EDO RAMs. ECC/Parity Support Maximum moemory of SIMMs and/or DIMMs support up to 384MB . Onboard I/O 1 x Floppy Drives (2.88MB support and 3 Mode with LS120 FDD) 2 x Serial Ports (high-speed UART compatible) 1 x Parallel Port (ECP, EPP Capability) Optional infrared port module for wireless interface Onboard PCI BM IDE 2 x PCI Bus Master IDE slots (Support 4 IDE devices in two channels) Support: PIO Mode 3 & 4 DMA Mode 2 Support ATAPI IDE CD-ROM PnP Audio Optional onboard Creative Labs ViBRA 16CL/CX 16-bit ISA Audio with OPL-3 FM Synthesizer. (with joyport, microphone, Line-in, Line-out connectors) 3D Surround Sound ATX Power Connector 3V, 5V and 12V 20-Pin ATX Power Connector, support software bootup. BIOS Award® PCI BIOS with DMI function, Green, and . Symbios PCI SCSI BIOS 1M-bit Flash EPROM Board Size ATX Form Factor 24.4cm x 30.5cm (9.6" x 12") Intelligence Monitoring Prevent System Overheat and System Damage Each fan can be set for its normal RPM range and alarm thresholds System resource monitor warns the user for adequate system resources to run applications Voltage levels are monitored to ensure stable current to critical motherboard components CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ASUS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
