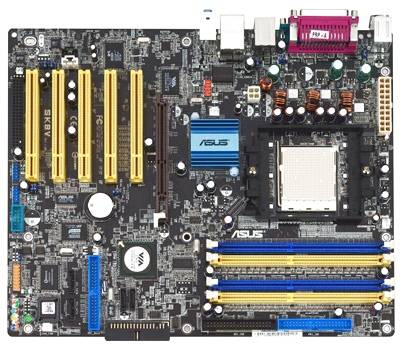

SK8V - ASUS


SK8V
AMD Athlon 64 FX Processor
VIA K8T800
Scalable HyperTransport
Dual SATA RAID
AI NET
IEEE 1394
Wi-Fi slot for optional wireless LAN upgrade





Feel the Power of AMD Athlon 64 FX Processor

With an array of advanced technology and AMD64 architecture, the SK8V provides an incredible K8 performance. Supporting a dual-channel DDR400 memory architecture, scalable HyperTranspor, IEEE1394 high speed connection, S/PDIF digital audio, Dual SATA RAID
--------------------------------------------------------------------------------

AMD Athlon 64 FX Processor
The AMD Athlon 64 FX and Opteron 100 Series processor are based on AMD64 technology, which represents the landmark introduction of the industry's first x86-64 technology. This next-generation processor provides a dramatic leap forward in compatibility, pe

VIA K8T800
The VIA K8T800 chipset is powering next generation 64-bit compatible platforms based around the new AMD Athlon 64 processors. The K8T800 combined with the VIA VT8237 South Bridge enables an unparalleled range of cutting edge I/O and multimedia features, i
HyperTransport
HyperTransport technology is a high-speed, low latency, point-to-point link designed to increase the communication speed between integrated circuits in computers, servers, embedded systems, and networking and telecommunications equipment up to 48 times fa
ASUS Wi-Fi slot
The Wi-Fi slot is specifically designed for the ASUS Wireless LAN add-on card (ex. WiFi-b™) to set up an environment for home Wireless LAN. The ASUS WiFi-b™ add-on card bundles the exclusive Software AP (Access Point) to save the extra cost of an hardware re AP has to be purchased separately)


Dual SATA RAID
The Promise 20378 RAID controller incorporated two Serial ATA and one parallel connectors with RAID 0, RAID 1 and RAID 0+1 functions while the VT8237 RAID controller provides another two Serial ATA connectors for RAID 0 and RAID 1 functions. The K8V is th
AI NET
The AI Series supports Gigabit LAN by integrating the 3COM 3C940 controller, equipped with a unique net-diagnosing utility-- VCT (Virtual Cable Tester). The controller intelligently detects net connection status up to 100 meters from a remote location and
AI BIOS
ASUS POST Reporter
During the computer POST (Power On Self-Test), ASUS POST Reporter provides friendly voice warnings through external speaker, clearly explaining system errors for quick and easy optimization. The bundled Winbond Voice Editor software allows users to add cu Q-Fan
ASUS Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation.
ASUS CrashFree BIOS2
The CrashFree BIOS 2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process.
ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.


AI AUDIO (6-channel digital audio)
AI series motherboards employed the world's first intelligent audio CODEC. The 6-channel AD1985 audio CODEC automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection,
IEEE 1394 interface
IEEE 1394 interface provides high speed digital interface for audio / video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
Instant music
Through this unigure feature, ASUS motherboard are conveniently designed to allow users to enjoy their favorite music, without the need to enter Windows.

Multi-language BIOS
ASUS provides friendly localized BIOS setup menu to help you configure your system as easy as possible.

ASUS MyLogo2
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.


C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Simply restart the system and the BIOS will automatically restore the CPU default setting for each parameter.


ASUS EZ Flash
With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required.

S/PDIF-out Port on back I/O (on audio model only)
The K8V's S/PDIF out function turns your computer into a high-end entertainment system with digital connectivity to powerful speaker systems.

6 Channel Audio
The K8V Deluxe uses an onboard Audio CODEC that lets you enjoy high-quality 6-channel audio without having to buy advanced sound cards.

USB 2.0 Ready
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backward compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data<
Trend Micro™ PC-cillin 2002 anti-virus software
Bonus! Free bundleTrend Micro™ PC-cillin 2002 anti-virus software (OEM version)


--------------------------------------------------------------------------------


SK8V DDR333 Memory Qualified Vender List
The following table lists the memory modules that have been tested
and qualified for use with this motherboard.
Size Vendor Part No. Chip Brand DS/SS Chip No. DIMM sock
A* B* C*
256MB .ATP AB32L72Q8SQB3S SAMSUNG SS K4H560838D-TCB3(ECC)REG v v v
512MB ATP AB64L72Q8S8B3S SAMSUNG DS K4H560838D-TCB3(ECC)REG v v v
1024MB ATP AB64L72Q8S8B3S SAMSUNG DS K4H560438D-TCB3(ECC)REG v v v
1024MB ATP AB28L72P4SMB3C Infineon DS HYB25D256400BT-6B(ECC)REG v v v
512MB TwinMOS M2S5J18C2AWB5F0811C-T Winbond DS W942508CH-6(ECC)REG v v v
256MB Kingston KVR333X72RC25/256 Infineon SS HYB25D256809BT-6B(ECC)REG v v
512MB Kingston KVR333X72RC25/512 Micron DS MT46V64M4TG-6TC(ECC)REG v v v
1024MB Kingston KVR333X72RC25/1024 DS D644DWH-60(ECC)REG v v
512MB CORSAIR CM72SD512RLP-2700/S SAMSUNG DS K4H560838D-TCB3(ECC)REG v v v
1024MB CORSAIR CM74SD1024RLP-2700/S SAMSUNG DS K4H560438D-TCB3(ECC)REG v v
256MB Apacer 77.10632.112 Infineon SS HYB25D256800BT-6B(ECC)REG v v v
512MB Apacer 77.10732.112 Infineon DS HYB25D256800BT-6B v v
1024MB Apacer 78.01053.112 Infineon DS HYB25D256400BC-6SSS26366 v v v


SK8V DDR400 Memory Qualified Vender List
The following table lists the memory modules that have been tested
and qualified for use with this motherboard.


Size Vendor Part No. Chip Brand DS/SS Chip No. DIMM socket support (Optional)
A* B* C*
512MB Apacer 77.10747.332 Infineon DS HYB25D256800CE-5 v
1GB Apacer 78.01058.112 Infineon DS HYB25D256400CE-5 v v



A*: Supports one module inserted in slot A as Single-channel memory configuration
B*: Supports one pair of modules inserted into the blue slots as one pair of Dual-channel memory configuration
C*: Supports 4 modules inserted into both the blue and the black slots as two pairs of Dual-channel memory configuration.




 CPU Support
Compatibility

RAM Memory Support
Compatibility
