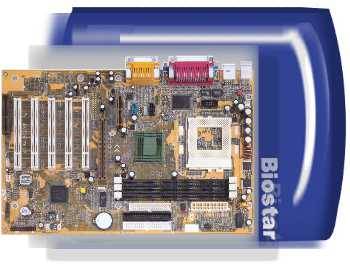

M6TSL- BIOSTAR
Proccessor * The Coppermine (FC-PGA) and Celeron (FC-PGA only) * Provides Socket 370. * Running at 66 MHz,100 MHz and133MHz Front Side Bus frequency. Chipset * Intel 815E (ICH2) Speed * Supports from 300MHz to 933MHz CPU core speeds. Dram * Supports three16/32/64/128MB DIMM module sockets. * Supports a maximum memory size of 512 MB with SDRAM. * 100/133MHz Bus frequency. Slots * Provides 1-AMR slot, 5-PCI Bus slots, 1-CNR slot and 1-AGP Bus slot. * One TV/DFP expansion connector (Optional). PCI Enhanced IDE Built-in Onboard * Supports 4 IDE hard disk drives. * Supports PIO mode 4, Master Mode high performance hard disk drives. * Supports Ultra DMA/33, Ultra DMA/66 Bus and Ultra DMA/100Bus Master Mode. * Supports IDE interface with CD-ROM. * Supports high capacity hard disk drives. * Supports LBA mode. * Driver detected by BIOS. AC'97 Sound Codec Onboard * AC-LINK protocol compliance. * AC'97 2.1 compliant. * Energy saving power down modes. *18-bit full duplex stereo ADC, DACs. * SNR>95 Bb through mixer and DAC. * AC-3 playback required for PVD applications. * Support 4-channel audio codec. LPC I/O Built-in Onboard * LPC Interface. * PC98, PC99 Compliant. * Game Port Interface. * MPU-401 MDI Support. * Intelligent Auto Power Management. * 2.88MB Super I/O Floppy Disk Controller. * Enhanced Digital Data Separator. * Serial Ports. * Infrared Port. * Multi-Mode Parallel Port with Chip Protect. Accelerated Graphics Port (AGP) * Supports AGP 2.0 including 4X AGP data transfers. * High priority access support. * Hierarchical PCI configuration mechanism. * Supports via dual mode buffers to allow AGP 2.0, 3.3V or 1.5V signaling. Integrated 2D/3D graphics accelerator * Integrated 24-bit 230MHz RAMDAC. * H/W Motion Compensation Assistance for S/W MPEG/DVD Decode. * Optional 4MB Display Cache. * Optional TV out/ Flat Panel Display Interface support. Hardware Monitor Subsystem * Management Level 4 functionality. * Microprocessor System Hardware Monitor: Fan speed sensors. Size ATX Form Factor 20 cm x 30 cm (W x L) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : BIOSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
