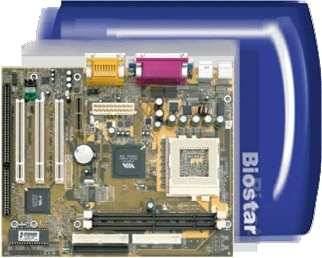

M6VLB- BIOSTAR
Processor * Supports Celeron (PPGA) and Pentium III. * CPU Socket 370 * Support 66/100/133 MHz Front Side Bus frequency. Chipset VIA PLE + 686A Dram * Supports two 8/16/32/64/128/256 MB DIMM module sockets. * Supports Synchronous DRAM (3.3V). * Supports up to 512 MB with SDRAM. * 133MHz Bus frequency. Slots * Provide one AMR, three PCI and one ISA slots. I/O * One multi-mode Parallel Port * One serial port, 16550 UART with 16 byte FIFO. * UART data rates up to 1.5Mbaud. * One Infrared Transmission (IR) port. * PS/2 mouse. * One Floppy disk drives. *Two back panel USB and 2 front panel USB (optional). PCI Enhanced IDE Built-in Onboard * Supports four IDE hard disk drives. PIO Mode 4, Master Mode, and high performance hard disk drives. * Supports Ultra DMA 33, Ultra DMA66 Bus Master Modes. * Supports high capacity hard disk drives. * Supports LBA mode. Internal Accelerated Graphics Port (AGP) Controller * AGP v1.0 Compliant * Intelligent request for maximum AGP bus utilization. * Independent GART lookup control for host AGP, PCI master accesses General Graphic Capabilities * 64-bit single cycle 2D/3D graphic engine. * Real time DVD MPEG-2 and AC- playback High Performance CADE3D Accelerator * 32 entry command queue, 32 entry data queue * Pipelined Setup / Texturing / Rendering Engines * DirectDraw Acceleration. Direct Sound Ready AC97 Digital Audio Controller * Dual full-duplex Direct Sound channels between system memory and AC97 link. * 32 byte FIFO each direct sound channel. * Standard v1.0 or v2.0 AC97 Codec interface for single or cascaded AC97 Codec's from multiple vendors Size Micro ATX form factor Dimension: 24.4cm x 20cm ( W x L) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : BIOSTAR Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: name=Biostar M6VLB e-mail=nekdo@altavista.net text=Deska je to dost očesaná. Nejde u ní PC speaker protože na desce není osazen jeden a tranzistor a jeden resistor (opravdu úspora jako ďas). Není osazen konektor na system fan. Dále všechny teploty "monitorované" na desce ukazují stále 25°C. Další nepříjemnost je, že občas se zachvějí vertikální kontury obrazu (pouze při 65000 barvách). Abych jen nekritizoval, zvuková část AC97 je dost kvalitní (klidně použitelná na domácí audio), deska málo hřeje a podporuje i levné a studené CPU Cyrix. Stojí pouze 2800Kč včetně DPH a poštovného a tříleté záruky. Ideální se tedy deska jeví pro běžné kancelářské použití a přehrávání DVD či MP3. |
|
