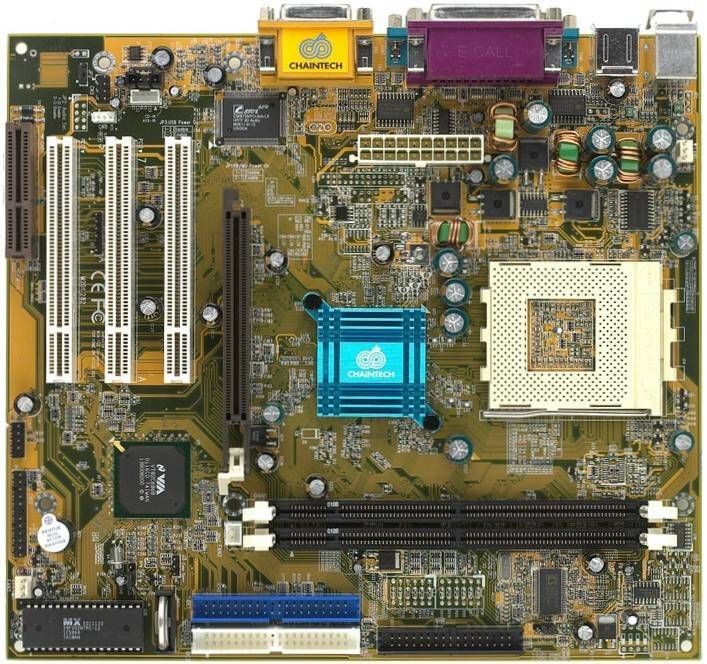

7AIA5 - CHAINTECH
Socket A AMD Duron/Athlon/Athlon XP 200/266MHz FSB, u-ATX, VIA KT133A + VT82C686B BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor Micro-ATX(220mm x 244mm) CPU Supports AMDR Socket A Duron?/Athlon? CPU System clock supports 266 MHz Chipset VIA KT133A + VT82C686B Main Memory Two 168 pin SDR DIMMs up to 1GB Supports PC100/133 SDRAM modules Expansion Slots Three 32-Bit PCI slots (v2.2 compliant) One PCNR slot support modem, audio riser Audio Subsystem Onboard audio 8738 Full-duplex operation for simultaneous recording and playback 6 Channel speaker audio support Embedded 32OHM 5w earphone amplifier Supports MIDI and dual game ports 32 Voice HRTF 3D positional audio, CRL 3D supports MS Direct Sound3D, Aureal A3D and Creative EAX APIs Support SPDIF (optional) Video Subsystem Universal-AGP slot for both 2X/4xAGP (v2.0 compliant) UltraDMA IDE Ports Two UltraDMA-66/100 IDE Ports Supports PIO Mode 4 up to 16.6 Mbps, Multi-Word DMA Mode 2 and Ultra DMA mode 5 up to 100MB/s with Bus Mastering Bus-Mastering software drivers for all common multitasking operating systems Embedded USB Controller UHCI compliant USB host controller with Root hub Four USB ports (UHCI v1.0 compliant) with over-current protection Optional USB adapter for additional USB ports On Board Super I/O Controller Two UARTs support one serial port and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Embedded system monitoring 5 external voltage inputs 1 temperature sensing for CPU and system 2 Fan speed (CPU and system) monitoring with on/off control in suspend Boot-Block Flash ROM Award system BIOS support PnP, APM, DMI, ACPI, & Multi-devicebooting features Software Driver CD (Chipset Autodetect) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
