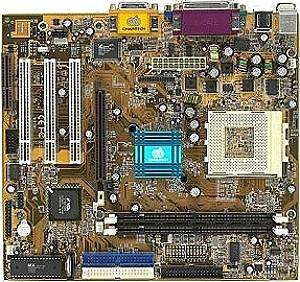

7AIV5 - CHAINTECH
Socket A AMD Duron/Athlon/Athlon XP 200/266MHz FSB, u-ATX, VIA KM133A + VT82C686B BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor Micro-ATX(220mm x 244mm) CPU Supports AMDR Socket A Duron/Athlon/Althon XP CPU System clock supports 200/266 MHz Chipset VIA KM133A + VT82C686B (7AIV5) Main Memory Two 168 pin SDR DIMMs up to 1GB Supports PC100/133 SDRAM modules Expansion Slots One Universal-AGP slot for both 2X/4xAGP (v2.0 compliant) Three 32-Bit PCI slots (v2.2 compliant) One PCNR slot support modem, audio riser Audio Subsystem Onboard audio CMI8738 Full-duplex operation for simultaneous recording and playback 6 Channel speaker audio support Embedded 32OHM 5w earphone amplifier Supports MIDI and game port 32 Voice HRTF 3D positional audio, CRL 3D supports MS Direct Sound3D, Aureal A3D and Creative EAX APIs Video Subsystem Onboard video subsystem Integrated 128-bit S3 Savage4 2D/3D graphics accelerator Full frame DVD audio and video playback Shared system memory, up to 32MB Option LTI2-8605 adapter to support DFP and NTSC/PAL TV UltraDMA IDE Ports Two UltraDMA-66/100 IDE Ports Supports PIO Mode 4 up to 16.6 Mbps, Multi-Word DMA Mode 2 and Ultra DMA mode 5 up to 100MB/s with Bus Mastering Bus-Mastering software drivers for all common multitasking operating systems Embedded USB Controller UHCI compliant USB host controller with Root hub Four USB ports (UHCI v1.0 compliant) with over-current protection Optional USB adapter for additional USB ports On Board Super I/O Controller Two UARTs support one serial port and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Embedded system monitoring 5 external voltage inputs 1 temperature sensing for CPU and system 2 Fan speed (CPU and system) monitoring Boot-Block Flash ROM Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features Software Driver CD (Chipset Autodetect) Other Feature CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
