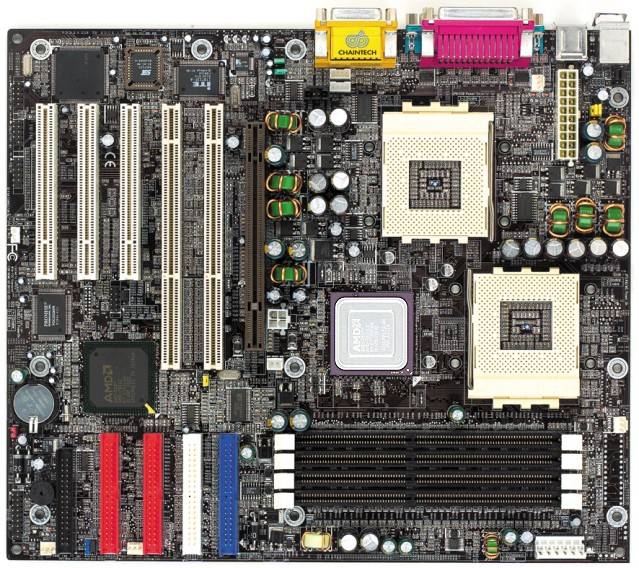

7KDD - CHAINTECH
Socket A AMD Athlon MP 200/266MHz FSB, Dual CPU, ATX, AMD 762 + 768 BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor ATX(305mm x 260mm) CPU Supports two AMD Socket-A Athlon MP CPU (Note: when using two CPU, both CPU must be the same frequency) System clock supports 200/266 MHz Chipset AMD 762 + 768 Main Memory Four 184 pin Register DDR DIMMs up to 4GB Supports PC1600/2100 Register DDR SDRAM modules Expansion Slots One AGP Pro slot for both 2X/4XAGP (v2.0 compliant) Three 32-Bit PCI slots (v2.2 compliant) Two 64-Bit / 66MHz PCI slots Audio Subsystem On-board Audio subsystem via AC-link with external high quality AC'97 CODEC Complete software driver supports for Windows OS Video Subsystem One AGP Pro slot for both 2X/4XAGP (v2.0 compliant) UltraDMA IDE Ports Ultra DMA-66/100 PCI IDE Controller Supports two IDE ports up to 4 ATAPI devices Supports PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 66MBps and Multi Word Mode 5 up to 100MBps with Bus Mastering Bus-Mastering software drivers for all common multi-tasking operating systems Embedded USB Controller Integrated USB 1.1/2.0 Controller UHCI compliant USB host controller with Root hub Four USB1.1 ports with over-current protection On-board NEC chip supports four USB2.0 ports Optional USB adapters for additional two USB1.1 and four USB2.0 ports On Board Super I/O Controller ITE 8712 LPC I/O with system monitors hardware Three UARTs support two serial port and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Embedded system monitoring 8 external voltage inputs 2 temperature sensing for CPU and system 2 Fan speed (CPU and system) monitoring Boot-Block Flash ROM Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features On board IDE RAID Controller Promise PDC20265R IDE RAID controller supports extra two UltraDMA -100/133 IDE ports with RAID 0/1 Software Driver CD (Chipset Autodetect) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
