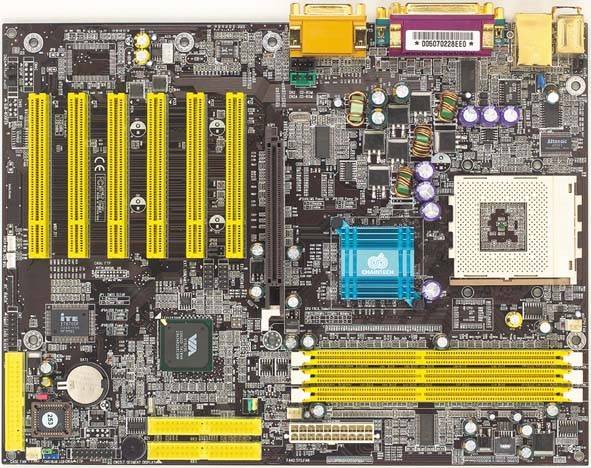

7VJL1 - CHAINTECH
Socket A AMD Duron/Athlon/AthlonXP 200/266MHz FSB, ATX, VIA KT266A + VT8235 BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor ATX(305mm x 230mm) CPU Supports AMD Socket A Duron/Athlon/XP CPU System clock supports 200/266 MHz Chipset VIA KT266A + VT8235 Main Memory Three 184 pin DDR DIMMs up to 3GB Supports PC1600/2100 DDR SDRAM modules Expansion Slots One Universal-AGP slot for both 2X/4XAGP Six 32-Bit PCI slots (v2.2 compliant) Audio Subsystem Full-duplex operation for simultaneous recording and playback 6 Channel speaker audio supports Embedded 32OHM 5w earphone amplifier Supports MIDI and game port 32 Voice HRTF 3D positional audio, CRL 3D supports MS Direct Sound3D, Aureal A3D and Creative EAX APIs Video Subsystem Video 4XAGP UltraDMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 66MBps, Multi Word Mode 5 up to 100MBps and Multi Word Mode 6 up to 133MBps with Bus Mastering Bus-Mastering software drivers for all common multi-tasking operating systems Embedded USB Controller Three EHCI USB 2.0 Controllers support total 6 USB 2.0 ports Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates Optional USB adapter for additional USB2.0 ports On Board Super I/O Controller Two UARTs support serial ports and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Integrates smart card reader function and interface, to be qualified for meeting PC/SC standard Embedded system monitoring 8 external voltage inputs 2 temperature sensing for CPU and system 2 Fan speed (CPU and system) monitoring Boot-Block Flash ROM Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features Software Driver CD (Chipset Autodetect) Other Feature Back panel I/O connector One PS/2 mini-DIN mouse and keyboard ports Two USB Ports and one RJ45 connector Two 9-pin D-SUB male Serial port One 25-pin D-SUB female parallel port Audio Line-in, Line-out and Mic-in jacks One 15-pin D-SUB female game/MIDI port On board connector for external device Three 3x1 pin fan connector Two 5x2 pin USB connectors for front side 4 USB2.0 ports 6x2 pin Infrared connector 3x1 pin wake on LAN connector with housing 3x1 pin wake on Modem connector with housing 4x1 pin CD-in connector with 2.54mm pitch housing 4x1 pin Aux-in connector with 2mm pitch housing 4x1 pin Mono-in connector with 2mm pitch housing 4x2 pin woofer/center connector for 6 channel audio 5x2 pin front side audio connector 9x2 pin front panel connector 7x2 pin Smart Card Reader connector 17x2 pin floppy connector On-board LAN controller Support 10/100Mb Fast Ethernet with external PHY CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
