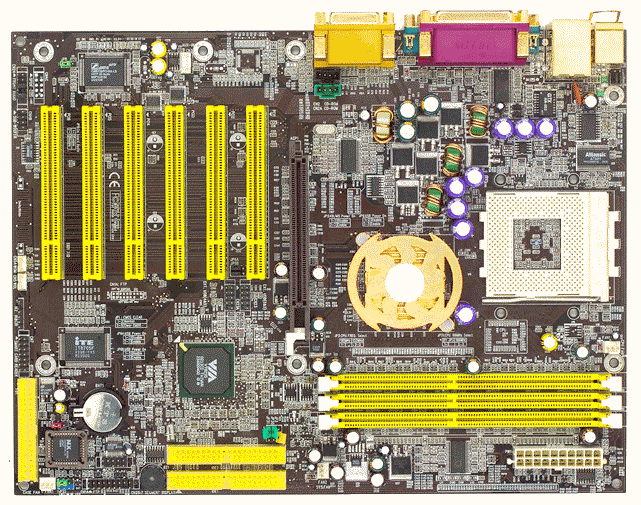

7VJL APOGEE™ - CHAINTECH
Socket A AMD Duron/Athlon/Athlon XP 200/266/333MHz FSB, ATX, VIA KT333 + VT8235 View Accessories BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor ATX (230mm x 305mm) CPU Supports AMD Socket A Duron/Athlon/Althon XP CPU System clock supports 200/266/333 MHz Chipset VIA KT333 + VT8235 Main Memory Three 184 pin DDR DIMMs up to 3GB Supports PC1600/2100/2700 DDR SDRAM modules Expansion Slots One Universal-AGP slot for both 2X/4XAGP (v2.0 compliant) Six 32-Bit PCI slots (v2.2 compliant) Audio Subsystem Full-duplex operation for simultaneous recording and playback 6Channel speaker audio supports Embedded 32OHM 5w earphone amplifier Supports MIDI and game port 32 Voice HRTF 3D positional audio, CRL 3D supports MS Direct Sound3D, Aureal A3D and Creative EAX APIs Video Subsystem Video : AGP 4X UltraDMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to66MBps, Multi Word Mode 5 up to 100MBps and Multi Word Mode 6 up to 133MBps with Bus Mastering Bus-Mastering software drivers for all common multi-tasking operating systems Embedded USB Controller Embedded USB1.1/2.0 Controller Three EHCI USB 2.0 Controller support total 6 USB 2.0/1.1 Ports Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates On Board Super I/O Controller Two UARTs support serial ports and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Integrates smart card reader function and interface, to be qualified for meeting PC/SC standard Embedded system monitoring 8 external voltage inputs 2 temperature sensing for CPU and system 2 Fan speed (CPU and system) monitoring Boot-Block Flash ROM Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features Software Driver CD (Chipset Autodetect) Value Pack 2002/2003 Thiz Linux 6.0 APOGEE? Overclocking Other Feature On board connector for external device Three 3x1 pin fan connector Two 5x2 pin USB connectors for front side 4 USB ports 6x1 pin Infrared connector 3x1 pin wake on LAN connector with housing 3x1 pin wake on Modem connector with housing 4x1 pin CD-in connector with 2.54mm pitch housing 4x1 pin Aux-in connector with 2mm pitch housing 4x1 pin Mono-in connector with 2mm pitch housing 4x2 pin woofer/center connector for 6 channel audio 5x2 pin front side audio connector 9x2 pin front panel connector 17x2 pin floppy connector CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
