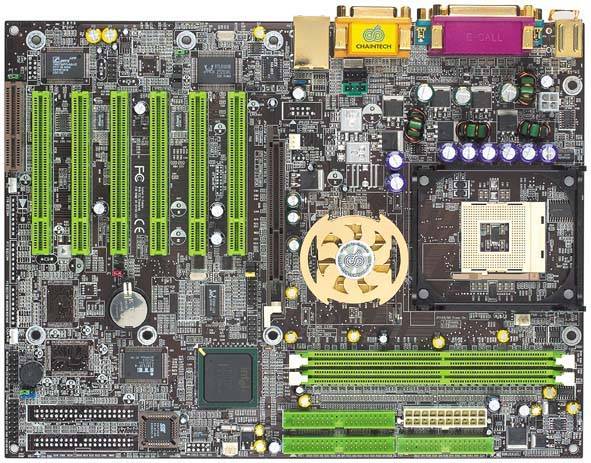

9EJL2 APOGEE™ - CHAINTECH
Socket 478 Intel® Celeron/Pentium 4 400/533MHz FSB, ATX, Intel 845PE + ICH4 View Accessories BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor ATX (305mm x 230mm) CPU Supports Intel Socket 478 CPU with Hyper-Threading Technology Supports Intel Celeron / Pentium 4 system bus at 400/533MHz Chipset Intel 845PE + ICH4, supports Hyper-Threading Technology Main Memory Two 184-pin DDR DIMMs up to 2GB Supports PC1600/2100/2700 DDR SDRAM modules Expansion Slots One 1.5V AGP slot for 4XAGP (v2.0 compliant) Six 32-Bit PCI slots (v2.2 compliant) One CNR slot support modem, audio and LAN riser Audio Subsystem Full-duplex operation for simultaneous recording and playback 6 channel speaker audio supports Embedded 32OHM 5w earphone amplifier Supports MIDI and game port 32 Voice HRTF 3D positional audio, CRL 3D supports MS Direct Sound3D, Aureal A3D and Creative EAX APIs Video Subsystem 4X AGP UltraDMA IDE Ports Supports PIO Mode 4 up to 16.6 Mbps, Multi-Word DMA Mode 2 and Ultra DMA mode 5 up to 100MB/s with Bus Mastering Bus-Mastering software drivers for all common multitasking operating systems Embedded USB Controller Three EHCI USB 2.0 Controllers support total 6 USB 2.0/1.1 Ports Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates Optional USB adapter for additional USB2.0/1.1 ports On Board Super I/O Controller ITE 8712 LPC I/O with system monitors hardware Two UARTs support serial ports and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Integrates smart card reader function and interface, to be qualified for meeting PC/SC standard Embedded system monitoring 8 external voltage inputs 2 temperature sensing for CPU and system 2 Fan speed (CPU and system) monitoring with on/off control in suspend Boot-Block Flash ROM Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features Software Driver CD (Chipset Autodetect) Value Pack Thiz Linux 6.0 APOGEE overclocking utility Other Feature Fast Ethernet/Home Networking Controller On-board LAN chip RTL8100B supports 10/100Mb Fast Ethernet or 1/10Mb HomePNA2.0 Back panel I/O connector One PS/2 mini-DIN mouse and keyboard ports Two USB Ports and one RJ45 connector Two 9-pin D-SUB male Serial ports Audio Line-in, Line-out and Mic-in jacks One 15-pin D-SUB female game/MIDI port On board connector for external device Three 3x1 pin fan connector Two 5x2 pin USB connectors for additional 4 USB2.0/1.1 ports 6x1 pin Infrared connector 3x1 pin wake on LAN connector with housing 3x1 pin wake on Modem connector with housing 4x1 pin CD-in connector with 2.54mm pitch housing 4x1 pin Aux-in connector with 2mm pitch housing 4x1 pin Mono-in connector with 2mm pitch housing 4x2 pin woofer/center connector for 6-channel audio 5x2 pin front side audio connector 9x2 pin front panel connector 7x2 pin Smart Card Reader connector 5x2 pin USB Power On connector 17x2 pin floppy connector CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
