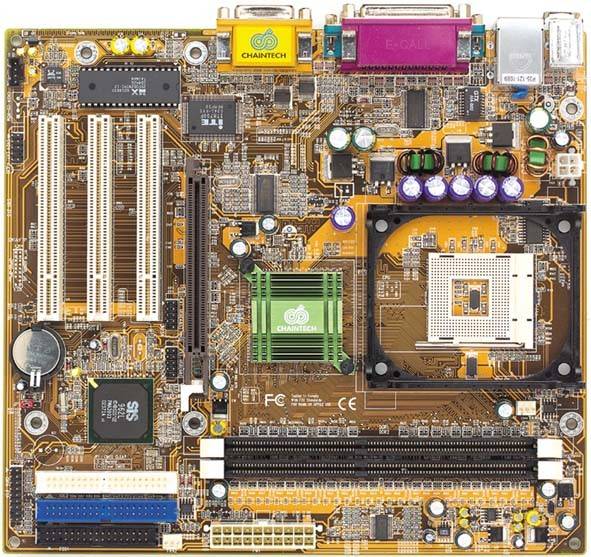

9SIF8 - CHAINTECH
Socket 478 Intel® Celeron/Pentium 4 400/533MHz FSB, u-ATX, SiS651 + SiS962L BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor Micro-ATX (244mm x 220mm) CPU Supports Intel Celeron/Pentium 4 Socket 478 CPU with Hyper-Threading Technology Supports Intel Celeron/Pentium 4 System bus at 400/533MHz Chipset SiS 651 + SiS 962L, support Hyper-Threading Techonlogy Main Memory Two 184 pin DDR DIMMs up to 2GB Supports PC1600/2100/2700 DDR SDRAM modules Expansion Slots One universal-AGP slot for 2X/4X AGP (v2.0 compliant) Three 32-bit PCI slots (v2.2 compliant) Audio Subsystem With external high quality AC'97 Codec Complete software driver supports for Windows OS Video Subsystem Embedded Graphics UltraDMA IDE Ports Supports two IDE ports up to 4 ATAPI devices Supports PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 66MBps, Multi Word Mode 5 up to 100MBps and Multi Word Mode 6 up to 133MBps with Bus Mastering Bus-Mastering software drivers for all common multi-tasking operating systems Embedded USB Controller Three EHCI USB 2.0 Controller support total 6 USB 2.0/1.1 Ports Support USB 2.0 High-Speed Device @480 Mb/s Transfer Rates On Board Super I/O Controller Two UARTs support serial ports and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive connector supports up to 2.88MB Boot-Block Flash ROM Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features Software Driver CD (Chipset Autodetect) Other Feature On board LANController (optional) On-board PHY LAN supports 10/100Mb Fast Ethernet Back panel I/O connector One PS/2 mini-DIN mouse and keyboard ports Two USB Ports and one RJ45 connector One 9-pin D-SUB male Serial port One 15-pin D-SUB female VGA port One 25-pin D-SUB female parallel port Audio Line-in, Line-out and Mic-in jacks One 15-pin D-SUB female game/MIDI port On board connector for external device Two 3x1 pin fan connectors Two 5x2 pin USB connectors for additional 4 USB2.0/1.1 ports 3x1 pin wake on LAN connector with housing 3x1 pin wake on Modem connector with housing Two 4x1 pin CD-in connectors 5x2 pin front side audio connector 9x2 pin front panel connector 17x2 pin floppy connector CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
