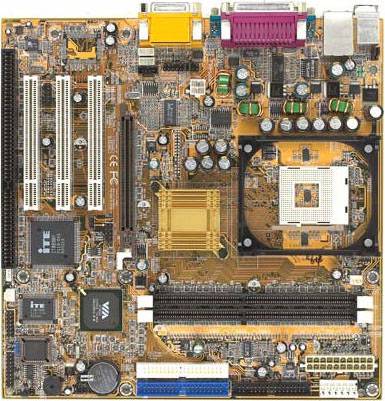

9VIF (ES-675M) - CHAINTECH
Socket 478 Intel® Celeron/Pentium 4 400MHz FSB, u-ATX, VIA P4M266 + VT8233 BIOS Utility Manual Drivers for Motherboard Memory Compatibility list Feature Highlights Form Factor Micro-ATX (244mm x 244mm) CPU Supports the Intel Celeron/Pentium 4 Socket 478 CPU Supports the Intel Celeron/Pentium 4 System bus at 400MHz Chipset VIA P4M266+VT8233 Main Memory Two 184 -pin DDR DIMMs up to 2GB Supports PC1600/2100 DDR SDRAM modules Expansion Slots One AGP slot for 2X/4XAGP (v2.0 compliant) Three 32-Bit PCI slots (v2.2 compliant) One ISA slot (optional) Audio Subsystem With external high quality AC'97 Codec Complete software driver supports for Windows OS Video Subsystem Integrated 128-bit S3 Savage4 2D/3D accelerator Full frame DVD audio and video playback Shared system memory, up to 32MB UltraDMA IDE Ports Supports PIO Mode 4 up to 16.6 Mbps, Multi-Word DMA Mode 2 and Ultra DMA mode 5 up to 100MB/s with Bus Mastering Bus-Mastering software drivers for all common multitasking operating systems Embedded USB Controller UHCI compliant USB host controller with Root hub Six USB ports (UHCI v1.0 compliant) with over-current protection Optional USB adapter for additional USB ports On Board Super I/O Controller Two UARTs support serial port and IR function (up to 115.2Kbps) for HPSIR and ASKIR One SPP/ECP/EPP parallel port One floppy disk drive c onnector supports up to 2.88MB Integrates smart card reader function and interface, to be qualified for meeting PC/SC standard Embedded system monitoring 8 external voltage inputs 1 temperature sensing for CPU 2 Fan speed (CPU and system) monitoring Boot-Block Flash ROM Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features Software Driver CD Value pack Other Feature Back panel I/O connector One PS/2 mini-DIN mouse and keyboard ports Two USB Ports and one RJ45 connector One 9-pin D-SUB male serial port One 15-pin D-SUB female VGA port One 25-pin D-SUB female parallel port Audio Line-in, Line-out and Mic-in jacks One 15-pin D-SUB female game/MIDI port On board connector for external device Two 3x1 pin fan connector 5x2 pin two USB ports connector for front side USB 6x2 pin Infrared connector 3x1 pin wake on LAN connector with housing 4x1 pin CD-in connector with 2.54mm pitch housing 4x1 pin Aux-in connector with 2mm pitch housing 4x1 pin Mono-in connector with 2mm pitch housing 4x2 pin woofer/center connector for 6 channel audio 9x2 pin front side audio connector 9x2 pin front panel connector 7x2 pin Smart Card Reader connector 15x2 pin LTI2-8605 connector for DFP/TV OUT 17x2 pin floppy connector CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
