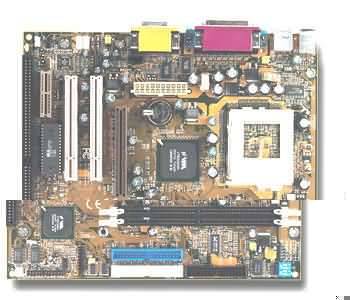

CT-6AIA4- CHAINTECH
ChipSet VIA Pro 133 ( 694X + 686A ) two chip 4 x AGPset Processor Support Celeron up to 700MHz System Clock 66 / 100 / 133MHz CPU Type Socket 370 AGP Supports AGP 1x / 2x / 4 X AGP cards Memory Socket 168-pin 3.3V VCM DIMM x 2 Type SDRAM Size 512MB ECC single bit Award BIOS Function PnP , DMI , Multi-device booting Protect Trend ChipAwayVirus IDE PIO Mode 4 Multi-word DMA Mode 2 Ultra DMA-66 timings Audio Embedded High quality AC'97/98 CODEC provides 90dB+ SNR quality audio. Built-in FM-emulation music synthesizer. Full-duplex operation for recording and playback Built-in 48KHz sample rate. Optional Creative ES1373 SB AudioPCI 128 audio chip. Advanced 64-voice Wavetable synthe- sizer. Full-duplex operation for recording and playback 4KHz to 48KHz sample rate for recording and playback. Support S/PDIF-out for digital audio. Up to 8MB wavetable provides 128GM, GS and WT-32 compatible instruments and 10 drum kits. Super I/O Serial port 2 UARTs support and IR support for HPIR and ASKIR (up to 115.2Kbps) Parallel port SPP/ECP/EPP Floppy Support 2.88MB, Japanese 3Mode and 1Mbps transfer mode Expansion slots 2x PCI, 1x ISA, 1x AGP, 1x AMR Dimensions micro ATX form factor , 244mm × 205mm , 4 layers I/O Connectors PC99 compliant colored code PS/2 Mini-DIN Keyboard & Mouse ports Two USB ports ( optional adaptor w/ additional 2 USB ports ) Two 9-pin D-SUB Serial ports One 25-pin D-SUB Printer port One 15-pin Game / MIDI port Audio Line-out , Line-in and Mic-in jacks Features Innovative SeePU technology for jumperless CPU installation Embedded system monitor hardware Advanced Management Capabilities: Power-on events: - WOL (Wake-On-LAN) network card - Modem ring - RTC Alarm - Supports Software power-off control for Win95/98 - Over-ride power button Hardware reset protect Hardware design meets Microsoft PC99 requirements Poly-fuse overcurrent protection for USB and keyboard ACPI STR ready Software application group includes PC-Cillin, Norton AntiVirus, Norton Ghost and HighPoint XStore Pro Fresh BIOS write protection CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
