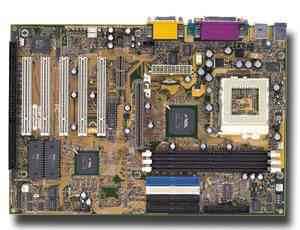

CT-6AJA4- CHAINTECH
ChipSet VIA 694X / 686B two chip 4 x AGPset Processor Support Intel processors VIA Cyrix III processors in future System Clock 66 / 100 / 133MHz CPU Type Socket 370 AGP Supports AGP 1x / 2x / 4 X AGP cards Memory Socket 168-pin 3.3V DIMM x 3 Type SDRAM Size 768MB Feature Sync. & Async. Host-Memory clock scheme Award BIOS Function PnP , DMI , APM , ACPI , Multi-device booting Optional TWIN BIOS ( 6AJR4 only ) IDE PIO Mode 4 Multi-word DMA Mode 2 Ultra DMA-66/100 timings Optional High Point HPT368 IDE Accelerator with RAID0/1/0+ Audio Onboard CMedia 8738 audio chip w/ legacy audio SB16/Pro compatible. 4-Channel speaker audio support Supports MIDI and dual game ports Optional High quality AC'97 CODEC provides 90dB+ SNR CD quality audio. Built-in FM-emulation music synthesizer Full-duplex operation for recording and playback Hardware SoundBlaster pro for Windows DOS box and real-mode DOS legacy compatibility Super I/O Serial port 2 UARTs support and IR support for HPIR and ASKIR (up to 115.2Kbps) Parallel port SPP/ECP/EPP Floppy Support 2.88MB, Japanese 3Mode and 1Mbps transfer mode Expansion slots 5x PCI, 1x ISA, 1x AGP, 1x AMR USB Embedded USB controller to support 4 USB ports ( Optional USB riser with 2 additional USB ports ) Dimensions ATX form factor , 305mm × 230mm , 4 layers I/O Connectors PC99 compliant colored code PS/2 Mini-DIN Keyboard & Mouse ports Two USB ports ( optional adaptor w/ additional 2 USB ports ) Two 9-pin D-SUB Serial ports One 25-pin D-SUB Printer port One 15-pin Game / MIDI port Audio Line-out , Line-in and Mic-in jacks Features Complete CPU protection with OVT ( Over Voltage Protect ) and OCP(Over Current Protect ) technology. Superior Overclocking capability with up to 150MHz frequency subtle 1MHz frequency. Embedded system monitor hardware. Advanced Management Features: Power-on events: - WOL (Wake-On-LAN) network card - Modem ring - RTC Alarm - USBs Software power off control for Win95 Over-ride power button Hardware Reset Protect Three states Power-failure recovery Blinking Power-LED in suspend Poly-fuse overcurrent protection for USB and keyboard Valued software bundle Embedded BIOS flash utility, HDD Instant Recovery Complete Data Security 1. Flash BIOS write protection against unauthorized access 2. Trend ChipAway Virus, to ensure virus-free booting procedure Innovative SeePU technology for jumperless CPU installation CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
