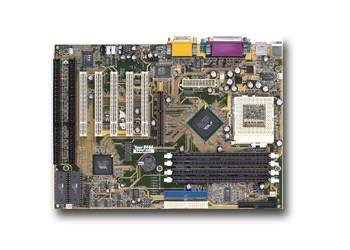

CT-6AJM2- CHAINTECH
ChipSet VIA 693A + 596B two chip AGPset Processor Support Intel Socket 370 processors VRM v8.4 compliance System Clock 66 / 100 / 133MHz CPU Type Socket 370 AGP Supports AGP 1x / 2x AGP cards Memory Socket 168-pin 3.3V DIMM x 4 Type SDRAM Size 1GB Feature Single-bit ECC capability Award BIOS Function PnP , DMI , APM , ACPI , Multi-device booting Optional TWIN BIOS IDE PIO Mode 4 Multi-word DMA Mode 2 Ultra DMA-33 timings Audio Optional CMedia 8738 audio chip w/ legacy audio SB16/Pro compatible. 4-Channel speaker audio support Supports MIDI and dual game ports Supports 24-bit S/PDIF-in/out for digital audio Super I/O Chipset ITE 8693 I/O with keyboard controller Serial port 2 UARTs support and IR support for HPIR and ASKIR (up to 115.2Kbps) Parallel port SPP/ECP/EPP Floppy Support 2.88MB, Japanese 3Mode and 1Mbps transfer mode Expansion slots 5x PCI, 2x ISA, 1x AGP, USB Two USB ports with over-current protection Dimensions micro ATX form factor , 305mm × 220mm , 4 layers I/O Connectors PC99 compliant colored code PS/2 Mini-DIN Keyboard & Mouse ports Two USB ports Two 9-pin D-SUB Serial ports One 25-pin D-SUB Printer port One 15-pin Game / MIDI port Audio Line-out , Line-in and Mic-in jacks Features Hardware design meets Microsodt PC99 requirements ACPI features ready Embedded system monitor hardware Advanced Management Features: Power-on events: - WOL (Wake-On-LAN) network card - Modem ring - RTC Alarm - Keyboard - Power button Software power off control Chassis intrusion detection Three states Power-failure recovery Blinking Power-LED in suspend Poly-fuse overcurrent protection for USB and keyboard Valued software bundle Complete Data Security 1. Flash BIOS write protection against unauthorized access 2. Trend ChipAway Virus, to ensure virus-free booting procedure 3. Embedded BIOS flash utility 4. HDD Instant Recovery protect against system crush CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
