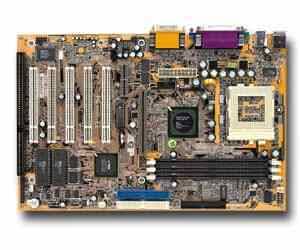

CT-6AJV5- CHAINTECH
ChipSet VIA PM133 / 686A/B two chip 4 x AGPset Processor Support Intel Pentium !!! and Celeron CPU System Clock 66 / 100 /133MHz CPU Type Socket 370 AGP Supports AGP 1x / 2x / 4 X AGP cards Embedded Graphic Accelerator Embedded 3D Graphics Engine Memory Socket 168-pin 3.3V unbuffered DIMM x 3 Size 768MB ECC single bit Award BIOS Function PnP , DMI , Multi-device booting Protect Trend ChipAwayVirus Optional TwinBIOS IDE PIO Mode 4 Multi-word DMA Mode 2 Ultra DMA-66/100 timings Audio Embedded AC'97 CODEC Optional CMedia 8738 audio chip w/legacy audio SB16/Pro compatible Super I/O Serial port 2 UARTs support and IR support for HPIR and ASKIR (up to 115.2Kbps) Parallel port SPP/ECP/EPP Floppy Support 2.88MB, Japanese 3Mode and 1Mbps transfer mode Embedded USB 4 USB ports ( UHCI v1.0 compliant ) w/ over-current protection Optional USB riser with 2 additional USB ports Expansion slots 5x PCI, 1x ISA, 1x AGP, 1x AMR Dimensions ATX form factor , 305mm x 220mm , 4 layers I/O Connectors PC99 compliant colored code PS/2 Mini-DIN Keyboard & Mouse ports Two USB ports Two 9-pin D-SUB Serial ports ( one serial port for 7AJV ) One 25-pin D-SUB Printer port One 15-pin Game / MIDI port Audio Line-out , Line-in and Mic-in jacks Features Superior Overclocking capability with up to 150MHz frequency , subtle 1MHz host frequency , Vcore and Vtt tuning technology Complete Data Security : - Flash BIOS write protection - Trend ChipAway Virus to ensure virus-free booting procedure - Embedded Flash Utility - Embedded HDD Instant Recovery protect against system crash Embedded system monitor hardware Advanced Management Capabilities: Power-on events: - WOL (Wake-On-LAN) network card - Modem ring - RTC Alarm - USBs Software power-off control for Win95 Over-ride power button Three states Power-failure recovery Chassis intrusion detection Blinking LED in suspend, Poly-fuse overcurrent protection for USB and keyboard CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
