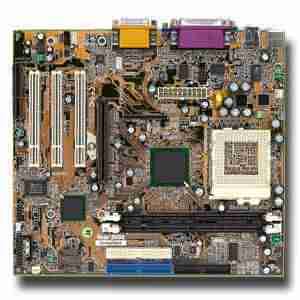

CT-6OIV- CHAINTECH
ChipSet INTEL 815 ( Solano GMCH / ICH1 ) two chip AGPset Processor Support INTEL Pentium !!! / Celeron CPU System Clock 66 / 100 /133MHz CPU Type Socket 370 FC-PGA AGP mbedded 3D AGP VGA RAMDAC 230MHz Resolution 1600*1200 256 colors 85Hz for 2D Features 3D Hyper Pipelined Architect w/PDP,PPI Motion Video acceleration for 30 fps software DVD Use an external TV encoder for NTSC and PAL TV out support Optional LTI-II slot for Panel Link LCD monitor and TV out Memory Socket 168-pin 3.3V unbuffered DIMM x 2 Type PC-100 ,PC-133 SDRAM Size 512MB Award BIOS Function PnP , DMI , Multi-device booting Protect Trend ChipAwayVirus IDE PIO Mode 4 Multi-word DMA Mode 2 Ultra DMA-66 timings Audio Embedded AC'97 v2.1 compliant CODEC w/ SRC Super I/O Chipset WB83627HF LPC I/O chip w/ System Monitor Hardware Serial port 2 UARTs support and IR support for HPIR and ASKIR (up to 115.2Kbps) Parallel port SPP/ECP/EPP Floppy Support 2.88MB, Japanese 3Mode and 1Mbps transfer mode Embedded USB UHCI v1.0 compliant USB controller with two ports Expansion slots 3x PCI, 1x AIMM, 1x CNR Dimensions ATX form factor , 244mm x 220mm , 4 layers I/O Connectors PC99 compliant colored code PS/2 Mini-DIN Keyboard & Mouse ports Two USB ports One 15-pin VGA port One 9-pin D-SUB Serial ports One 25-pin D-SUB Printer port One 15-pin Game / MIDI port Audio Line-out , Line-in and Mic-in jacks Features Complete Data Security : - Flash BIOS write protection - Trend ChipAway Virus to ensure virus-free booting procedure - Embedded Flash Utility - Embedded HDD Instant Recovery protect against system crash Advanced Management Capabilities: Power-on events: - WOL (Wake-On-LAN) network card - Modem ring - RTC Alarm Three states Power-failure recovery Chassis intrusion detection Blinking LED in suspend, Software power-off control for Win98 Over-ride power button System lockup recovery Hardware reset protect LDCM compliant System Monitoring Hardware Poly-fuse overcurrent protection ACPI STR ready Optional hardware audio provides full DOS S/W compatibility to support legacy gaming and educational markets CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
