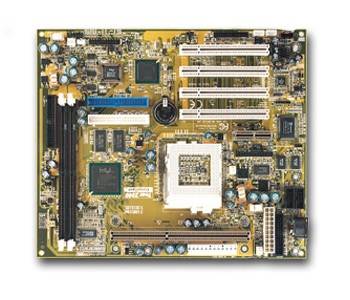

CT-6WEX- CHAINTECH
Processor Supports Intel Pentium-II/III up to 700MHz(6WEX) / 733MHz(6WEX2), Socket-370 up to 600MHz System clock 66/100 (6WEX), 66/100/133MHz (6WEX2) ChipSet Intel 810-e WHITNEY three-chip AGPset Intel 810 WHITNEY three-chip AGPset Audio Modem Riser (AMR) Supports cost effective soft-modem riser DRAM Memory Two 168-pin 3.3V unbuffered DIMM sockets supports at least up to 512MB SDRAM Embedded PCI Audio Subsystem AC`97 2.1 CODEC with SRC Embedded 3D AGP VGA 3D Hyper Pipelined Architecture w/PDP, PPI Full 2D Hardware Acceleration Graphics up to 1600X1200 in 8-bit color @ 85Hz refresh rate Hardware Motion Compensation Assistance for S/W MPEG2 decoder Integrated 24-bit 230MHz RAMDAC Optional 4MB SDRAM Display Cache Boot-block Flash ROM Intel 4MB FWH(Filmware Hub) Award System BIOS supports PnP , APM (v1.2), DMI (v2.0) & Multi-device booting (floppy, IDE/SCSI hard drive, LS120, ZIP ATAPI, CD-ROM) features Includes Trend ChipAwayVirus Embedded Ultra DMA-66 PCI/IDE Controller Two IDE ports supports up to 4 ATAPI devices Supports up to PIO Mode 4 up to 14MBps, Multiword DMA , Ultra DMA Mode 4 up to 66MBps with bus mastering Bus Mastering software drivers for all well-known multi-task operating systems On Board Super I/O Controller WB627HF LPC I/O chip w/ System Monitor Hardware 2S(16550A compliant) + 1P(SPP/ECP/EPP) + 1FD(up to 2.88MB, 3 Mode and 1Mbps transfer rate) Supports HPSIR,ASKIR,CIR function shared with 2nd serial port Two USB ports On Board Special Product Features Innovative SeePU technology for jumperless CPU installation 68/74/78/83/95/105/110/114/120/130/138/150MHz overclocking possibility Embedded LDCM compliant system monitoring hardware Advanced Management Capabilities: 1.) Power-on events: - Mouse movements or clicks - Keyboard password - WOL (Wake-On-LAN) networkcard - Modem ring - RTC Alarm 2.) Blinking LED in suspend 3.) Enhance Power-failure Recovery 4.) Chassis intrusion detection Supports ACPI STR (Suspend to DRAM) function Poly-fuse overcurrent protection for USB and keyboard. Software application group includes PC-Cillin98 and Norton AntiVirus, Norton Ghost and HighPoint XStore Pro . Complete Data Security 1).Chassis intrusion detection 2).Flash BIOS write protection 3).Trend ChipAway Virus and PC-cillin 98 to ensure virus-free environment CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
