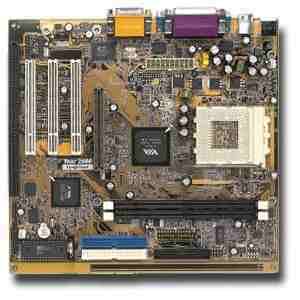

CT-7AIA - CHAINTECH
ChipSet VIA KT133 / 686B ( 7AIA ) VIA KM133 / 686B ( 7AIV ) two chip 4 x AGPset Processor Support AMD K7 CPU (100MHz DDR transfer ) FSB 200 MHz CPU Type Socket A AGP Supports AGP 1x / 2x / 4 X AGP cards Embedded Graphic Accelerator ( for 7AIV ) Integrated 128-bit S3 Savage 4 2D/3D graphic engine Support 4x AGP including sideband addressing and execute mode Support up to 1920 x 1440 resolution Support DFP monitor and NTSC/PAL TV Memory Socket 168-pin 3.3V unbuffered DIMM x 2 Type PC-100 ,PC-133 SDRAM (VCM ) Size 512MB ECC single bit Award BIOS Function PnP , DMI , Multi-device booting Protect Trend ChipAwayVirus IDE PIO Mode 4 Multi-word DMA Mode 2 Ultra DMA-100 timings Audio Onboard CMedia 8738 4CH audio chip w/legacy audio SB16/Pro compatible Super I/O Serial port 2 UARTs support and IR support for HPIR and ASKIR (up to 115.2Kbps) Parallel port SPP/ECP/EPP Floppy Support 2.88MB, Japanese 3Mode and 1Mbps transfer mode Embedded USB UHCI compliant USB host controller with Root Hub 4 USB ports ( UHCI v1.0 compliant ) Optional USB riser with 2 additional USB ports Expansion slots 3x PCI, 1x ISA, 1x AGP, Dimensions µ-ATX form factor , 244mm x 220mm , 4 layers I/O Connectors PC99 compliant colored code PS/2 Mini-DIN Keyboard & Mouse ports Two USB ports Two 9-pin D-SUB Serial ports ( one serial port for 7AJV ) One 25-pin D-SUB Printer port One 15-pin Game / MIDI port Audio Line-out , Line-in and Mic-in jacks Features Complete Data Security : - Flash BIOS write protection - Trend ChipAway Virus to ensure virus-free booting procedure - Embedded Flash Utility - Embedded HDD Instant Recovery protect against system crash Embedded system monitor hardware Advanced Management Capabilities: Power-on events: - WOL (Wake-On-LAN) network card - Modem ring - RTC Alarm - Software power-off control for Win95 - Over-ride power button Three states Power-failure recovery Chassis intrusion detection Blinking LED in suspend, Poly-fuse overcurrent protection for USB and keyboard FAN power-off control in suspend CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : CHAINTECH Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
