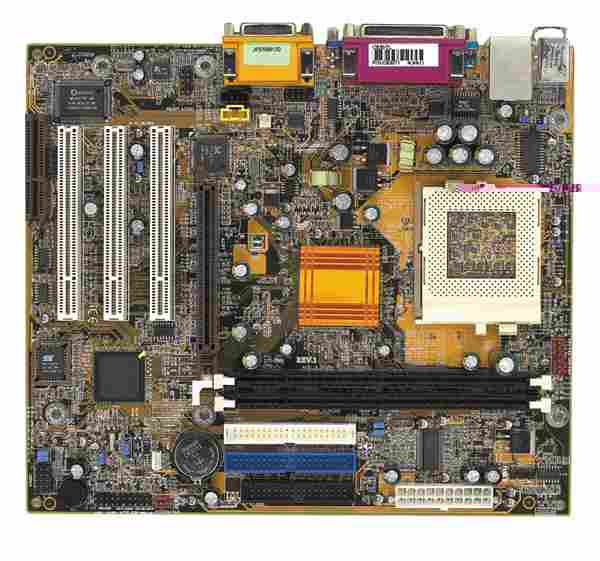

CS30-TC DFI
Chipset Intel 815 EG CPU Socket Socket 370 CPU Supported Intel Pentium III FCPGA2 1.13-1.26GHz/133MHz Intel Pentium III FCPGA 533EB-1GHz/133MHz Intel Pentium III FCPGA 500E- 1.1GHz/ 100MHz Celeron FCPGA2 >=1.2GHz/ 100MHz Celeron FCPGA 800-1.1GHz/ 100MHz Celeron FCPGA 566-700MHz/ 66MHz Future VIA CyrixIII processor Memory 2 x DIMM sockets max. 512MB (unbuffered) Supports PC100/ PC133 SDRAM PCI IDE Dual PIO mode 4 EIDE channels up to 4 IDE devices UltraDMA/100 transfer rate up to 100MB/sec Super I/O 2 x NS16C550A compatible UARTs 1 x SPP/ECP/EPP parallel port External Connectors 2 x USB, 1 x DB-9, 1 x DB-15, 1 x DB-25, 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x game/MIDI, 3 x Audio jacks Internal Connectors 2 x external USB, 1 x external serial, 1x IrDA, 2 x IDE, 1x Floppy, 1 x ATX power, 3 x fan,1 x WOL,1 x WOR, 1 x opened chassis alarm, 2 x internal audio Power Management ACPI and OS direct power management Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse Hardware Monitor System, processor temperature, voltage and fan speed Expansion Slots 1 GPA slot (Supports GPA card only) 3 PCI slots 1 CNR slot Audio On Board AC`97 Audio codec Video On Board Integrated 3D graphics with 133MHz DVMT 4MB display cache by AIMM card into the AGP slot (Optional) GPA 4X card into the GPA slot (Optional) Other features Suspend to RAM BIOS Award / 2Mbit Form Factors MicroATX, 4 layers 24.4cm x 21cm 9.6 inch. x 8.26 inch. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : DFI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
