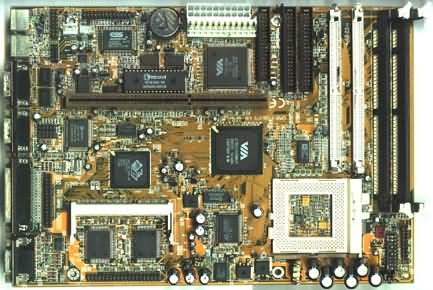

PAM-0067V E1- DTK Computer
Processor: Support Intel Pentium/MMX, AMD K5/K6/K6-2, Cyrix 6x86/6x86L/ 6x86MX/M II series processor Chipset: VIA VT82C598 Apollo MVP3, VT82C586B PIPC Winbond W83977EF ATI 3D Rage Pro Turbo ESS 1869 Architecture: ISA, IBM PC/AT and PCI 2.1 compatible AGP support – 2x sideband addressing, provide high performance and quality 3D accelerator solution. Max. bandwidth 533MB/sec 100MHz Front Side Bus Cache: 512KB Level 2 cache on board Main Memory: Two 168-pin DIMM sockets and two 72-pin SIMM sockets, which support both single and double side module DIMM Type - 8/16/32/64/128MB unbuffered 3.3V SDRAM or EDO SIMM Type - 4/8/16/32/64MB Maximum Size – 384MB ECC ( Error Checking and Correction ) support Power Management Features: True green functions: support SMM, SMI and CPU stop clock function ACPI/PC97 compatible VGA System: ATI 3D Rage Pro Turbo AGP VGA Internal 64-bit memory data bus Display memory 4MB SGRAM, up to 8MB TV-out and LCD-out support Sound System: ESS 1869 Audio System Support Full Duplex and "Plug and Play" Built-in MPU401 compatible MIDI I/O port, Joystick port Sound Blaster/Window Sound System compatible I/O Interface: Two fast serial ports (16550), One EPP/ECP parallel port Built-in FDC supports 1.2M/1.44M/2.88M FDD Two enhanced PCI IDE channels which support up to 4 IDE devices with PIO Mode 4 transfers up to 16.6MB/sec Support "Ultra DMA/33" transfers up to 33MB/sec PS/2 mouse and keyboard connectors Double Deck USB connectors IrDA support (optional) Audio Ports (Mic, Line-in, Line-out, MIDI/Game) System BIOS: Vendor – Award/AMI ROM Type – 2MB Flash ROM Plug and Play support Expansion Slots: One slot card supported 2 PCI bus master / slave slots 1 or 2 ISA slots Others Support ATX and AT Power Supply Form Factor: LPX 200mm (W) x 270mm(L) (9.6" x 7.67" ) 4 Layer PCB CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : DTK Computers Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
