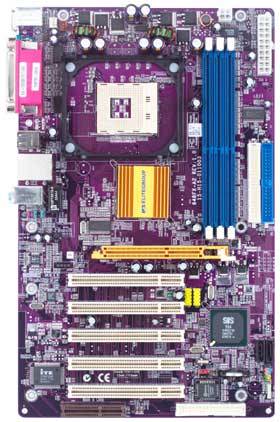

648FX-A2 V1.0 - ECS Elitegroup
Special Features FSB 800 HT CPU Support DDR 400 AGP 8X Serial ATA RAID0, RAID1 support 6 Channel Audio Processor Socket 478 for Intel Pentium 4 processors FSB 800/ 533/ 400MHz Support Hyper Threading Technology Chipset SiS® 648FX & 964 North Bridge: SiS® 648FX South Bridge: SiS® 964 System BIOS AMI 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification Main Memory 3 x 184-pin DDR DIMM socket support up to 3 GB ( DDR400 up to 2 GB ) Support DDR400/333/266 MHz 2.5V DDR SDRAM Expansion Slots 1 x AGP 8X/4X slot 5 x PCI slots 1 x CNR slot Storage Support by SiS® 964 4 x Ultra DMA133/100/66 devices 2 x Serial ATA devices RAID0 & RAID1 configuration Audio Realtek ALC655 6-Channel audio CODEC Compliant with AC'97 2.3 specification LAN Realtek RTL8201BL 10/100 Mbps Fast Ethernet PHY Rear Panel I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x Parallel port (LPT1) 1 x Serial port (COM1) 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors & Headers 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 2 x IDE connectors 2 x Serial ATA connectors 2 x USB 2.0 header support additional 4 USB Ports 1 x Speaker header 1 x SPDIF out header 1 x Front panel switch/LED header 1 x Front panel audio header CD in header CPUFAN/CASFAN connectors Form Factor & Layers ATX Form Factor, 305*190mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
