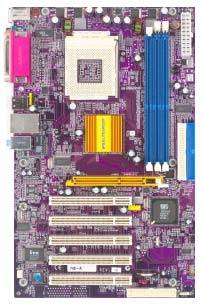

748-A V1.0 - ECS Elitegroup
Special Features 6 Channel Audio AGP 8X USB 2.0 Processor 462 pin Socket A supports AMD K7 processors, supports AMD Athlon XP/ processor up to 400 MHz. FSB Chipset SiS748 & SiS963L Chipset SiS963L MuTIOL Media I/O delivered data transfer rate up to 1GB/s Integrated USB 2.0 host controller in SiS963L AGP v3.0 compliant with 8x transfer mode. LAN:10/100Mbps Faster Ethernet (optional) LPC I/O:ITE8705F AC97 Audio Codec, CMI9739, 6-Channel, compliant with AC97 2.2 specification System BIOS AMI 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification Main Memory Three 184-pin DDR DIMM sockets to support three 2.5V DDR400 SDRAMs Maximum: 3GB Expansion Slots 5 PCI slots 1 AGP 8X slot 1 CNR slot I/O Interface Support Plug and Play funtion PS/2 keyboard and PS/2 mouse connectors One EPP/ECP mode parallel port One 16550 high-speed serial I/O port Four USB Ports and an optional LAN Connector Audio Ports (Line-in, Line-out and Mic-in) Dual PCI IDE interfaces ?V support four IDE devices (PIO Mode 4, DMA Mode 2, Ultra DMA 66/100, 133 for SiS963) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector CD-in header (CDIN1) Front Panel MIC/Line-Out header USB Card Reader Header RF1 header Extra USB Header (USB3) for two USB devices HDD LED, Reset Switch, Power Switch headers CPU and chasis Fan headers RTC & Battery SiS963L built-in 256 byte of CMOS SRAM With CMOS hardware clear jumper Form Factor & Layers ATX (305mm*190mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
