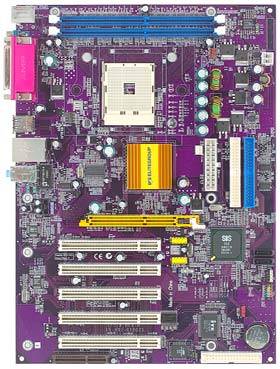

755-A V1.0 - ECS Elitegroup
Special Features K8 HT 1600 AGP 8X 6 Channel Audio Serial ATA 10/100 Lan Processor Socket 754 for AMD K8 Athlon 64 processor High-performance Hyper Transport CPU interface. Support transfer rate of 1600/1200/800/400 mega-transfers per second. Chipset North Bridge: SiS755 South Bridge: SiS964 Memory 2 x 184-pin DDR DIMM socket support up to 2 GB Support DDR 333/266 MHz 2.5V DDR SDRAM LAN Realtek RTL820BL 10/100 Mbps Fast Ethernet PHY Storage Support by SiS964 4 x Ultra DMA133/100/66 devices 2 x Serial ATA devices RAID0 & RAID1 configuration Expansion Slots 1 x AGP 8X slot 5 x PCI slots 1 x CNR slot Audio Realtek ALC655 6-Channel audio CODEC Compliant with AC'97 2.3 specification Back Panel I/O Ports 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x Parallel port (LPT1) 1 x Serial port (COM1) 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors & Header 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 2 x IDE connectors 2 x Serial ATA connectors 1 x Speaker header 2 x USB 2.0 header support additional 4 USB Ports 1 x SPDIF out header 1 x Front panel switch/LED header 1 x Front panel audio header CD in/ AUX in headers CPUFAN/CASFAN connectors BIOS Award BIOS with 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI Full Support for ACPI revision 1.0 specification Form Factors ATX Form Factor, 305*220mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
