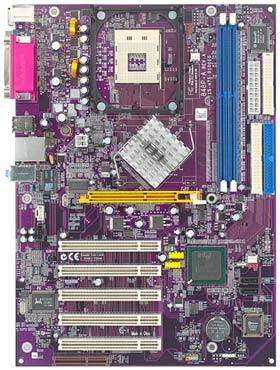

848P-A V1.0 - ECS Elitegroup
Special Features FSB 800 AGP 8X Serial ATA USB 2.0 6 Channel Audio HT CPU Support Processor Socket 478 for Intel Pentium 4 processors FSB 800/533/400MHz Chipset Intel® 848P & ICH5 LAN RTL8100C 10/100 Mbps Faster Ethernet controller (optional) IDE 2 UltraDMA 100 / 66 Expansion Slots 1 AGP 8X slot 5 PCI 1 CNR Form Factors ATX Form Factor, 305*220mm Memory 2x184-pin DIMM sockets support two 2.5V DDR SDRAMs(DDR400/333/266) Maximum: 2GB Audio ALC 655 6-channel CODEC Compliant with AC97 2.3 specification Back Panel I/O Ports 1 x PS/2 keyboard 1 x PS/2 mouse 1 x Parallel Port 1 x Serial Port 4 x USB 2.0 Ports 1 x RJ 45 Port 1 x Audio I/O (Line-in, Line-out and Mic-in) Internal I/O Connectors & Header 20-pin ATX Power Supply connector 4-pin ATX 12V Power Supply connector Dual PCI IDE interfaces, 4 IDE devices 360K~2.88M Byte, 3 Mode FDDs or LS120 1 x S/PDIF-out header, 1 x CD-in header, 1x AUX-in heaer 2 xSATA ports 2 x USB 2.0 header support additional 4 USB ports (USB3, USB 4) HDD LED, ACPIMSG LED, Reset Switch, Power Switch headers CPU / Power / Chassis FAN connectors Front Panel MIC/Line-in out header BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI Full Support for ACPI revision 1.0 specification CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
