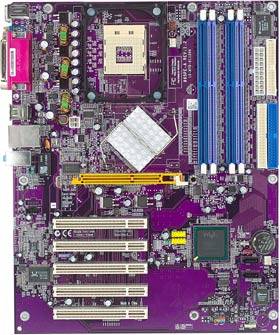

865PE-A V2.0 - ECS Elitegroup
Special Features FSB 800 HT CPU Support Dual DDR-400 Serial ATA AGP 8X 6 Channel Audio Processor Socket 478 for Intel Pentium 4 processor FSB 800/ 533/ 400MHz Support Hyper-Threading Technology Chipset Intel® 865PE & ICH5 North Bridge: Intel® 865PE South Bridge: Intel® ICH5 BIOS Award BIOS with 4Mb Flash ROM Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification Main Memory Dual-channel DDR memory architecture 4 x184-pin DDR DIMM socket support up to 4 GB Support DDR400/333/266/200 2.5V DDR SDRAM LAN Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller Expansion Slots 1 x AGP 8X/4X slot 5 x PCI slots Storage Support by Intel® ICH5 4 x Ultra DMA100/66 devices 2 x Serial ATA devices Audio Realtek ALC655 6-Channel audio CODEC Compliant with AC'97 2.3 specification Rear I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x Parallel port (LPT1) 1 x Serial port (COM1) 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors & Headers 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 2 x IDE connectors 2 x Serial ATA connectors 2 x USB 2.0 header support additional 4 USB Ports 1 x SPDIF out header 1 x Speaker header 1 x Front panel switch/LED header 1 x Front panel audio header CD in/ AUX in headers CPUFAN/PWRFAN/SYSFAN connectors Form Factor & Layers ATX Form Factor, 305*244mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
