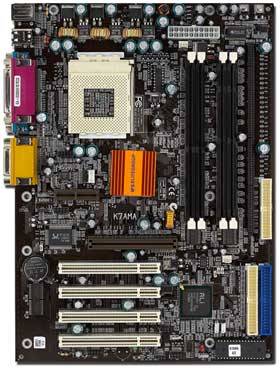

K7AMA - ECS Elitegroup
PROCESSORS 462 pin Socket A supports the AMD® K7 processors Full series of Athlon/Duron CPU including the future Athlon processors CHIPSET ALi® Magic 1645(NB) & Magic 1535D+(SB) Chipset Support AGP 2.0 specification (4X) Support PCI 2.2 Specification SAN: RealTek 8139C AC97 Audio Codec: Compliant with AC97 2.1 specification SYSTEM BIOS AMI 2Mb Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY 2 DDR DIMM Sockets and 2 DIMM sockets support (can not be used simultaneously) Two 184-pin 2.5V DDR SDRAM (DDR266/DDR200) or Two 168-pin 3.3V SDRAM (PC133/PC100) Maximum: 2GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Two USB Ports One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) LAN Header Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header Two Extra USB Headers Onboard Front Panel MIC/Line-out header Green, HDD, Power indicator LED headers CPU and Case Fan headers LAN Card Wake Up / Modem Ring Wake-Up Headers RTC & BATTERY M1535D+ included 256 bytes of CMOS With CMOS hardware clear jumper EXPANSION SLOTS 4 PCI slots, 1 AGP slot, 1 AMR slot FORM FACTOR ATX (304mm*220mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
