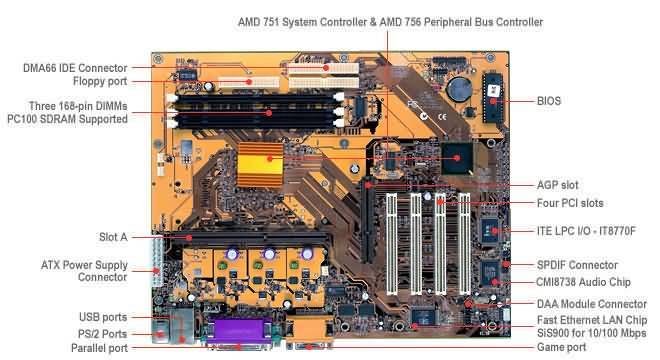

K7ASA- ECS
PROCESSORS 242 pin Slot A supports AMD® Athlon (K7) processors 200MHz FSB CHIPSET AMD® 751 System Controller & AMD® 756 Peripheral Bus Controller ITE LPC I/O - IT8770F System Hardware Monitor: Integrated in AMD® 756 CMI8738 PCI 3D Audio/HSP 56Kflex/V.90 Modem Chip SiS900 chip on board for 10/100Mbps Fast Ethernet LAN System hardware monitor chip: GL520SM MEMORY Three 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100) Maximum: 768MB SYSTEM BIOS AMI 2MB Flash ROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header onboard) One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector ports, Headers and Others: (Optional) SPDIF In/Out header for digital audio interface IrDA/CIR cable header Header for Modem DAA module Green, HDD, Power indicator LED headers CPU and Case Fan headers RTC & BATTERY AMD® 756 chip included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 4 PCI slots, 1 AGP slot FORM FACTOR ATX (302mm*244mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
