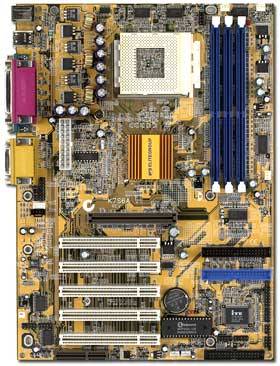

K7S6A - ECS Elitegroup
PROCESSORS 462 pin Socket A supports the AMD® Athlon/Duron K7 processors Full series of Athlon XP/Athlon/Duron processors Supports 100/133 MHz frontside bus (FSB) CHIPSET SiS® 745 System Chipset Super I/O and LPC - ITE8705F System Hardware Monitor: Built-in ITE8705F AC97 Audio Codec SYSTEM BIOS AMI 2Mb Flash ROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY Three 184-pin DDR DIMM sockets to support Three 2.5V DDR SDRAM (DDR266/DDR200) or Two 2.5V DDR SDRAM (DDR333) Maximum: 3GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Two USB Ports 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header Four additional USB ports (USB2/3 or LUSB1/2) Two CD-In headers Front Panel MIC/Line-Out header HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers PU and case fan headers LAN Card Wake Up / Modem Ring Wake Up header RTC & BATTERY SiS® 745 included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 4X AGP slot, 1 CNR slot FORM FACTOR ATX (304mm*220mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
