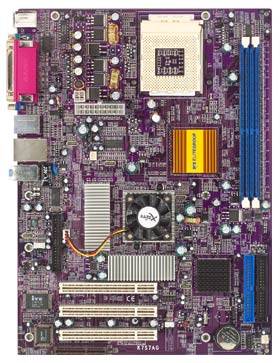

K7S7AG - ECS Elitegroup
Special Features Full AGP 8X platform AGP 8X USB 2.0 IEEE 1394 Supports DDR400 Integrated Xabre 200 Graphic Processing Unit (GPU) is the best AGP 8X solution supports 2.1GB/s data rate and runs at 533MHz; doubling the speed of the previous 266MHz AGP 4X architecture. Processor AMD® Athlon XP / Athlon / Duron CPU Socket A 333 / 266 / 200MHz Chipset SiS® 746 North Bridge SiS® 963 South Bridge Main Memory 2 DDR DIMMs Supports DDR400 / DDR333 / DDR266 / DDR200 Max. 2GB Graphics Xabre® 200 AGP 8X 256 bit GPU clock runs from 200 Built-in 64MB DDR on board runs from 400MHz Sound AC'97 Audio CODEC 6 Channel LAN 10/100Mbps faster Ethernet (optional) IDE 2 UltraDMA 133 / 100 / 66 / 33 USB 6 USB 2.0 (Embedded in SiS963) IEEE 1394 RealTek RTL8801B (PHY) integrated IEEE 1394A Host Controller Expansion Slots 3 PCI 1 CNR Back Panel I/O Ports 1 PS/2 Mouse 1 PS/2 Keyboard 1 Parallel 2 Serial 1 IEEE 1394A (optional) 1 LAN (optional) 4 USB 1 Line-in 1 Line-out Microphone BIOS Award 2Mb Flash EEPROM Form Factor ATX Board Size 305 mm x 244 mm 2D Engine Features Built-in Direct Draw Accelerator MPEG-II MP@ML standards compliant Built-in motion compensation logic Supports up to 20Mb/sec rate decoding Direct DVD to TV playback Supports single video windows with overlay function Supports DVD sub-picture playback overlay Built-in independent Gamma correction RAM 3D Engine Features Supports Direct 3D version 8.1; pixel shader version 1.3 Supports AGP 8X for texture/vertex fetch Built-in 32-bit floating point VLIW Geometry Transform/Lighting (T/L) and triangle setup engine Built-in 4 pixel programmable rendering pipelines and 8 texture units (4P8T) Supports up to 2048 x 2048 texture size Built-in hardware stereo auto rendering engine Supports 2X/4X full scene anti-aliasing This specification is subject to change without notice and all trademarks are property of their respective holders. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
