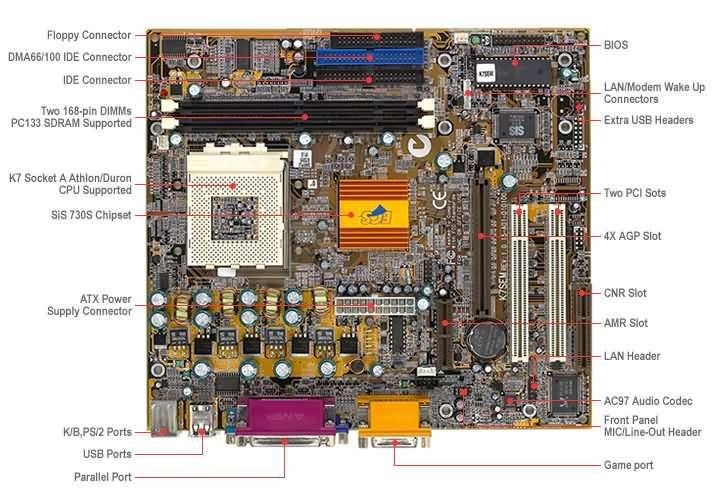

K7SEM- ECS
PROCESSORS AMD® Athlon/Duron (K7) processors Full series of Athlon/Duron CPU including the future Athlon processors. CHIPSET SiS® 730S support AGP 2.0 specification Integrated 4X AGP in SiS® 730S Simple LPC I/O - SiS®950/ITE8705 System Hardware Monitor: Integrated in SiS®950/ITE8705 LAN: RealTek 8139C AC97 Audio Codec Compliant with AC97 2.1 specification MEMORY Two 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 1.0GB SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0a, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0 specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Six USB Ports (Two USB Connectors as header onboard) One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports One VGA Connector Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector ports, Headers and Others: IrDA header Extra USB header Front Panel MIC/Line-out header LAN header Green, HDD, Power indicator LED headers CPU and Case Fan headers LAN Card Wake Up / Modem Ring Wake Up header RTC & BATTERY SiS® 730S included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 2 PCI slots, 1 AGP slot, 1 AMR slot, 1 CNR slot FORM FACTOR microATX (244mm*220mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
