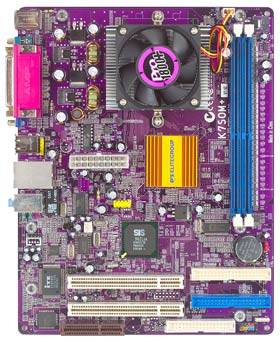

K7SOM+ 7.5C - ECS Elitegroup
Special Features CPU On Board Hardware Monitoring USB 2.0 Chipset SiS740/962L chipset with integrated advanced 128-bit 2D/3D graphic engine LPC I/O ?V ITE IT8705F System Hardware Monitor: Integrated in ITE IT8705F LAN ?V 10/100Mbps Faster Ethernet (optional) Audio ?V AC'97 Codec CMI9738A Main Memory Two 184-pin 2.5V DDR SDRAM (DDR200/266) Max. 1GB BIOS AMI 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Support ACPI revision 1.0 specification Expansion Slots 2 PCI slots 1 CNR slot I/O Interface PS/2 keyboard and PS/2 mouse connectors Four USB Ports and an optional LAN Connector One EPP/ECP mode parallel port One 16550 high-speed serial I/O port One VGA connector Audio ports (Mic, Audio-in, Audio-out port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector IrDA header Internal PC speaker header Extra Mic./ Speaker header CD ROM/DVD Audio Input header 2 Extra USB Ports HDD LED, Reset Switch, Suspend LED, Power Switch headers CPU and chasis Fan headers RTC & Battery Integrate CMOS SRAM in SiS962L With CMOS hardware clear jumper Form Factor & Layers microATX (244mm*190mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
