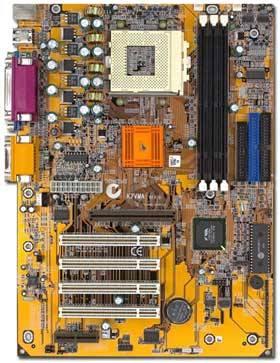

K7VMA - ECS Elitegroup
Support External (4X) & Internal AGP (4X) PROCESSORS 462 pin Socket A supports the AMD® Athlon (K7) processors up to 1.2GHz(100MHz FSB) AMD® Duron processors up to 850MHz Full series of Athlon processors including the newest Duron and Thunderbird processors CHIPSET VIA® VT8365 (NB) & VT82C686A/B (SB) Support AGP 2.0 specification (4X) Integrated Savage4 2D/3D video Accelerator (2 to 32MB shared memory) Super I/O - Integrated in VT82C686A/B System Hardware Monitor: Integrated in VT82C686A/B AC97 Audio Codec: Compliant with AC97 2.1 specification SYSTEM BIOS Award 2MB Flash EEPROM Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0 specification MEMORY Three 168-pin DIMMs sockets for 3.3V SDRAM (Ready for PC133) Maximum: 1.5GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header onboard) 1 - EPP/ECP mode parallel port 2 - 16550 high-speed serial I/O ports Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 ATX power supply connectors Ports, headers and others: IrDA header Extra USB Header Green, HDD, Power indicator LED headers CPU and case fan headers LAN Card Wake Up / Modem Ring Wake-Up headers RTC & BATTERY VT82C686A/B included 256 bytes of CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 4 PCI slots, 1 AGP slot, 1 AMR slot FORM FACTOR ATX (304mm*220mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
