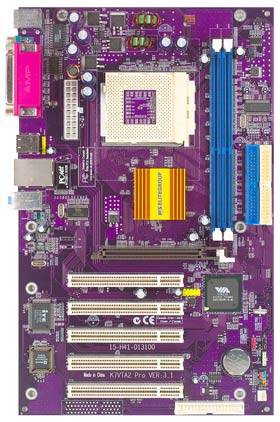

K7VTA2 Pro V3.1 - ECS Elitegroup
Special Features USB 2.0 Hardware Monitoring Processor 462 pin Socket A supports AMD K7 processors, full series of Athlon XP/ Athlon/ Duron processors. Chipset VIA KT266A (NB) & VT8235 CD (SB) VT8366A V-Link Host system controller and VT8235 V-Link Client to PCI/LPC bridge Integrated USB 2.0 host controller in VIA VT8235 Support AGP 2.0 specification (4X) LPC I/O:ITE8705F System Hardware Monitor: Integrated in ITE IT8705F LAN:10/100Mbps Faster Ethernet (optional) AC97 Audio Codec, compliant with AC97 2.1 specification BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Main Memory 2 DDR DIMM Sockets to support two 184-pin 2.5V DDR SDRAM (DDR200/266 Max. 2GB I/O Interface One EPP/ECP mode parallel port One 16550 high-speed serial I/O port Four USB2.0 Ports and an optinoal LAN connector Audio Ports (Line-in, Line-out and Mic-in) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 ATX Power Supply Connector CD-in header (CDIN1) USB Card Reader Header Front Panel MIC/Line-Out header Extra USB Header (USB3) for two USB devices HDD LED, Dual Color LED, Reset Switch, Power Switch headers CPU and chasis Fan headers PS/2 keyboard and PS/2 mouse connectors Supports Plug and Play function Form Factor ATX (304mm*190mm), 4 Layers RTC & Battery VT8235 CD included 256 byte of CMOS With CMOS hardware clear jumper CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
