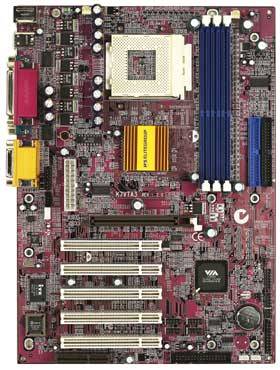

K7VTA3 V2.X - ECS Elitegroup
Special Features LAN / Modem Wake up Keyboard Power On Suspend to RAM (STR) IEEE 1394 (optional) Hardware Monitoring Smart Card Reader Processor AMD® Athlon XP / Athlon / Duron CPU Socket A 266 / 200MHz Chipset VIA® Apollo KT266A North Bridge VT8366A VIA® VT8233A South Bridge Super I/O Integrated in VT82C686A/B Main Memory 3 DDR DIMMs Supports DDR266 / DDR200 Max. 3GB Sound RealTek ALC100/P AC'97 CODEC IDE 2 UltraDMA 100 / 66 / 33 USB 2 USB 1.1 Expansion Slots 5 PCI 1 AGP (4X) 1 CNR Back Panel I/O Ports 1 PS/2 Mouse 1 PS/2 Keyboard 1 Parallel 2 Serial 1 Game Port 2 USB 1 Line-in 1 Line-out Microphone Internal I/O Connectors Front Panel Audio header Front Panel MIC/Speaker out header 4 USB headers 1 LAN wake up connector 1 Modem wake up connector SIR header Single color LED header Smart card reader header Speaker connector 20-pin ATX power connector BIOS Award 2Mb Flash EEPROM Form Factor ATX Board Size 220 mm x 304 mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
