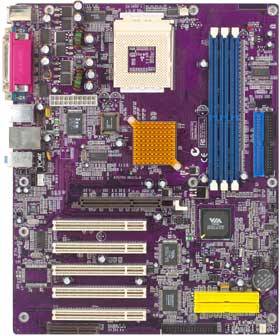

K7VTA3 V5.0 - ECS Elitegroup
Special Features Suspend to RAM (STR) USB 2.0 PROMISE IDE RAID Controller (optional) IEEE 1394 (optional) Supports DDR333 Supports UltraDMA 133/100/66 Processor AMD® Athlon XP / Athlon / Duron CPU Socket A RAID IDE array controller Chipset VIA® Apollo KT333 North Bridge VT8367 VIA® VT8235 South Bridge Super I/O ITE IT8705F Main Memory 3 DDR DIMMs Supports DDR333 Max. 3GB Sound VIA VT1612A AC'97 Audio CODEC 2 Channel LAN RealTek RTL8100B 10/100Mbps PCI LAN Chip (optional) VIA VT6103 Fast Ethernet 10/100 PHY / Transceiver (optional) IDE 2 UltraDMA 133 / 100 / 66 USB 6 USB 2.0 (Embedded in VT8235) IEEE 1394 (optional) VIA VT6306 integrated IEEE 1394A Host Controller (optional) Expansion Slots 5 PCI 1 AGP (4X) 1 CNR Back Panel I/O Ports 1 PS/2 Mouse 1 PS/2 Keyboard 1 Parallel 2 Serial 1 IEEE 1394A (optional) 1 Game Port 2 USB 1 LAN (optional) 1 Line-in 1 Line-out Microphone Internal I/O Connectors IrDA header CD-in header 2 extra USB ports 1 IEEE 1394A header (optional) CPU and Case fan connectors Single color LED header 20-pin ATX power connector 4-pin ATX power connector BIOS AMI 2Mb Flash EEPROM Form Factor ATX Board Size 305 mm x 244 mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
