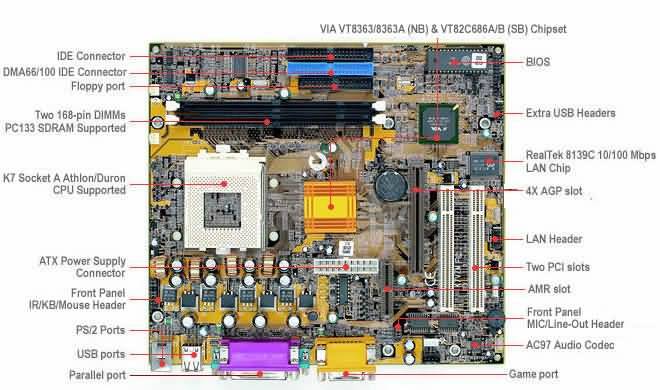

K7VZM- ECS
PROCESSORS AMD® Athlon (K7) processors up to 1.2GHz(100MHz FSB) and 1.2CGHz(133MHz FSB) AMD® Duron processors up to 850MHz Full series of Athlon processors including the newest Duron and Thunderbird processors. (Can support the future 1.5GHz Thunderbird) CHIPSET VIA® VT8363 (NB) & VT82C686A (SB) support AGP 2.0 specification (4X) Super I/O - Integrated in VT82C686A (SB) System Hardware Monitor: Integrated in VT82C686A (SB) LAN: RealTek 8139C AC97 Audio Codec: Avance ALC100(RealTek) Compliant with AC97 2.1 specification MEMORY Two 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC100, PC133) Maximum: 1.0GB SYSTEM BIOS Award BIOS with 4MB Flash ROM in Firmwave Hub (FWH) Supports Plug and Play 1.0a, AMP 1.2, Multi Boot, DMI Full Support for ACPI revision 1.0A specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Four USB Ports (Two USB Connectors as header onboard) One - EPP/ECP mode parallel port Two - 16550 high-speed serial I/O ports Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 LAN Header ATX Power Supply Connector ports, Headers and Others: IrDA header Extra IR/KB/Mouse header Extra MIC/Line-out header Green, HDD, Power indicator LED headers CPU and Case Fan headers Modem Ring Wake-Up header RTC & BATTERY VT82C686A included 256 bytes of CMOS SRAM With CMOS SRAM hardware clear jumper EXPANSION SLOTS 2 PCI slots, 1 AGP slot, 1 AMR slot FORM FACTOR microATX (244mm*220mm) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
