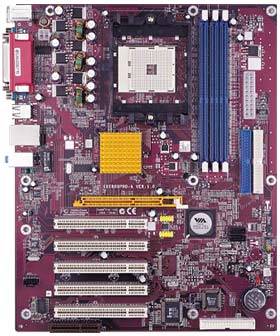

K8T800-A - ECS Elitegroup
K8 HT 1600 Provides with 1600MT/s system bus HT technology. Support DDR 400 DDR 400 supports bandwidth up to 3.2GB/s to provide enhanced system performance. AGP 8X Technology Highest bandwidth up to 2.1GB/s graphics interface enables upgradeability to latest graphics cards . 6-Channel Audio High-quality 6-channel audio brings a more vivid sound experience Serial ATA Supports Serial ATA HDD running at 150MB/s RAID0, RAID1 Provides RAID0, RAID1 modes 10/100 LAN Provides 10/100 Mbps solution to your network connection CPU Socket 754 for AMD K8 Athlon 64/Sempron processor High-performance Hyper Transport CPU interface. Support transfer rate of 1600/1200/800/400 mega-transfers per second. Chipset VIA® K8T800 Pro & VT8237 North Bridge: VIA® K8T800 Pro South Bridge: VIA® VT8237 Memory 3 x184-pin DDR DIMM socket support up to 2 GB Support DDR400/333/266 MHz 2.5V DDR SDRAM Expansion Slot 1 x AGP 8X/4X slot 5 x PCI slots 1 x CNR slot Storage Support by VIA® VT8237 4 x Ultra DMA133/100/66 devices 2 x Serial ATA devices RAID0 & RAID1 configuration Audio Realtek ALC655 6-Channel audio CODEC Compliant with AC'97 2.3 specification LAN VIA® VT6103L 10/100 Mbps Fast Ethernet PHY Rear Panel I/O 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 1 x RJ45 LAN connector 1 x Parallel port (LPT1) 2 x Serial ports (COM1 & COM2) 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors and Headers 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x FDD connector supports two 360K~2.88MB FDDs 2 x IDE interfaces 2 x Serial ATA connectors 1 x Speaker header 1 x SPDIF out header 2 x USB 2.0 header support additional 4 USB Ports 1 x Front panel audio header 1 x Front panel switch/LED header CD in/ AUX in headers CPUFAN/NB_FAN/CASFAN connectors System BIOS Award BIOS with 2Mb Flash ROM Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI Supports ACPI revision 1.0 specification Form Factor ATX Size 305mm*244mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
