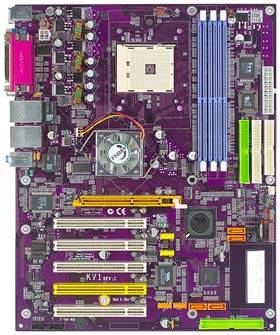

KV1 Deluxe V1.0 - ECS Elitegroup
Special Features PHOTON POWER (KV1 Deluxe) PHOTON LINK (KV1 Deluxe) PHOTON GUARDIAN (KV1 Deluxe) PHOTON GENIUS (KV1 Deluxe) Processor Socket 754 for AMD K8 Athlon 64/Sempron processor High-performance Hyper Transport CPU interface. Support transfer rate of 1600/1200/800/400 mega-transfers per second. Chipset North Bridge: VIA K8T800 South Bridge: VIA VT8237 Memory 3 x184-pin DDR DIMM socket support up to 2 GB Support DDR400/333/266 MHz 2.5V DDR SDRAM DUAL LAN Marvell 88E8001 Gigabit LAN Controller Realtek RTL8201BL 10/100Mbps Fast Ethernet PHY IEEE 1394a VIA VT6307 IEEE1394a controller: Supports 2 x IEEE1394a connectors Expansion Slots 1 AGP 8X slot 5 PCI Audio C-Media CMI9739A 6-channel audio CODEC Digital SPDIF(Coaxial & Optical) out Compliant with AC'97 2.2 specification Back Panel I/O Ports 1 x PS/2 keyboard & PS/2 mouse connectors 4 x USB ports 2 x RJ45 LAN connectors 1 x Parallel port (LPT1) 1 x Serial port (COM1) 2 x Digital SPDIF (Optical & Coaxial) out 1 x Audio ports (Line-in, Line-out, Mic-in) Internal I/O Connectors & Header 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector 1 x Floppy connector supports 360K~2.88M Bytes, 3 Mode FDDs or LS120 3 x IDE interfaces 4 x Serial ATA connectors 1 x IrDA for SIR header 2 x USB 2.0 header support additional 4 USB Ports 2 x 1394a headers 1 x EZ-Watcher header 1 x SMBus header 1 x Front panel audio header 1 x Front panel switch/LED header CD in/ AUX in headers CPUFAN/NB_FAN/CASFAN connectors BIOS Award 2Mb Flash EEPROM Supports Plug and Play 1.0A, APM 1.2, Muli Boot, DMI Full Support for ACPI revision 1.0 specification RTC & Battery VIA VT8237 included 256 bytes CMOS SRAM With CMOS SRAM hardware clear jumper Form Factors ATX Size (305mm*244mm), 6 layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
