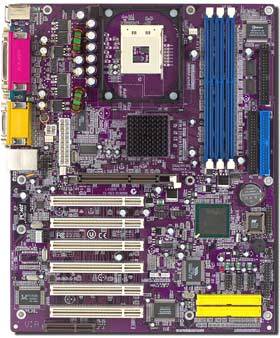

L4IBAE - ECS Elitegroup
MAC integrated in ICH4 & PHY on board or RealTek 8100B LAN on board (both optional) Supports USB 2.0 with ICH4 PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET Intel® 82845E & 82801DB Chipset - Memory Controller Hub (MCH), I/O Controller Hub 4 (ICH4) & Firmware Hub (FWH) with following features: Integrated USB2.0 Host Controller Support 4X AGP(AGP 2.0 Specification), 1.5V only LPC I/O: Winboard W83627HF LAN: MAC integrated in ICH4 and Intel® 82562ET PHY on board (optional) or RealTek 8100B LAN on board (optional) PROMISE PDC20265R IDE RAID Controller (optional) A C97 Audio Codec Compliant with AC97 2.2 specification SYSTEM BIOS Three 184-pin DDR DIMM sockets for 2.5V DDR SDRAMs (DDR266/DDR200); Maximum: 2GB MEMORY Award BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI Support for ACPI revision 1.0A specification I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors Dual USB Ports and an optional LAN connector One - EPP/ECP mode parallel port One - 16550 high-speed serial I/O ports Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Supports eight ATA/ATAPI devices (four optional) Standard: Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100) Option: Two independent ATA channels for another four IDE devices (PIO Mode 4 DMA Mode 2, UltraDMA66/100) ATX12V Power Supply Connectors Ports, Headers and Others: IrDA header Additional four USB ports (LUSB1/USB2 and USB3 Two IEEE1394 headers (optional) Front Panel MIC/Line-out header HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers CPU, Power and CASE Fan headers LAN Card Wake Up / Modem Ring Wake-Up headers RTC & BATTERY Intel® I/O Controller Hub 4 (ICH4) included 256 bytes CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 6 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR ATX (304mm*244mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
