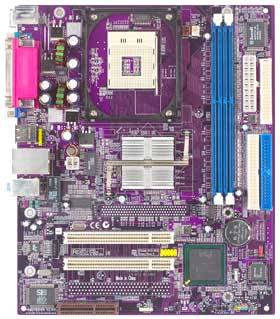

L4IBMGL6 - ECS Elitegroup
Special Features Hardware monitoring Keyboard power on USB 2.0 Processor Socket 478 supports the Intel Pentium 4 processor Chipset Intel 845GL & ICH4 Intel 845GL & ICH4 - Graphic Memory Controller Hub (GMCH), I/O Controller Hub 4 (ICH4) & Firmware Hub (FWH) with following features: Integrated USB2.0 Controller Integrated 2D/3D graphic controller LPC I/O: Winbond W83637HF-AW LAN:10/100Mbps Faster Ethernet (optional) AC97 Audio Codec, compliant with AC97 2.2 specification BIOS Award BIOS with Flash ROM in Firmware Hub (FWH) Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Main Memory Two 184-pin DDR DIMM sockets for 2.5V DDR SDRAM (DDR266/DDR200) Max. 2GB I/O Interface Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors 4 USB ports 1 LAN port (optional) One EPP/ECP mode parallel port 1 16550 high-speed serial I/O port (COM1) 1 VGA port Audio ports (Line-in, Line-out, Mic-in and CD-in) Supports 360K~2.88M Byte, 3 Mode FDDs or LS120 Dual IDE interfaces - supports four IDE Devices (PIO mode 4, DMA Mode 2, Ultra DMA66/100) ATX 12V Power Supply Connector IR header (SIR) Additional two USB ports (USB2) Front Panel MIC/Line-Out header HDD LED, Sleep LED, Reset Switch, Power Switch headers USB Card Reader Header CPU and chassis Fan headers RTC & Battery Intel® I/O controller hub 4 (ICH4) included 256 bytes CMOS SRAM With CMOS SRAM hardware clear jumper Expansion Slots 3 PCI (PCI3 optional) 1 CNR slot Form Factor microATX Size (244mm*203mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
