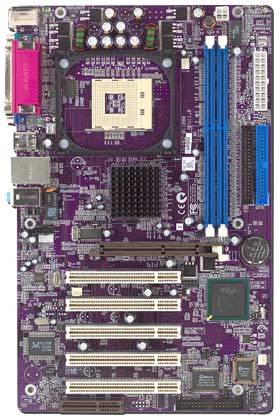

L4IGA2 - ECS Elitegroup
Intel® Pentium® 4 board that supports host bus up to 533MHz Integrated with the most advanced technologies: Suspend to RAM Magic setting LAN / modem wake up Hardware monitoring Keyboard power on USB 2.0 PROCESSORS Socket 478 supports the Intel® Pentium® 4 processor CHIPSET Intel® 82845G & 82801DB -- Graphic memory controller hub (GMCH), I/O controller hub 4 (ICH4) & Firmware hub (FWH) with following features: Integrated USB 2.0 controller Integrated 2D/3D graphic controller LPC I/O: Winboard W83627HF-AW LAN: 10/100 Mbps faster Ethernet (optional) AC97 audio codec Compliant with AC97 2.2 specification SYSTEM BIOS Award BIOS with flash ROM in firmware hub (FWH) Supports Plug and Play 1.0A, AMP 1.2, Multi boot, DMI Support for ACPI revision 1.0A specification MEMORY 2 DDR DIMM sockets support 2.5V DDR SDRAM (DDR266/DDR200) Maximum: 2GB I/O INTERFACE Supports Plug and Play function PS/2 keyboard and PS/2 mouse connectors 4 USB ports 1 LAN connector (optional 1 EPP/ECP mode parallel port 1 16550 high-speed serial I/O port 1 VGA port Audio ports (Line-in, Line-out, Mic-in, CD-in and game port) Supports 360K~2.88M Byte, 3 mode FDDs or LS120 Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA mode 2, Ultra DMA66/100) ATX 12V power supply connectors Ports, headers and others: IrDA header Additional 2 USB ports (USB3) Front panel Mic./Line-out header HDD LED, Sleep LED, Reset switch, Power switch headers Power fan, CPU fan and case fan headers RTC & BATTERY Intel® I/O controller hub 4 (ICH4) included 256 bytes CMOS SRAM With CMOS hardware clear jumper EXPANSION SLOTS 5 PCI slots, 1 AGP slot, 1 CNR slot FORM FACTOR & LAYERS ATX (304mm x 190mm), 4 Layers CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : ECS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
